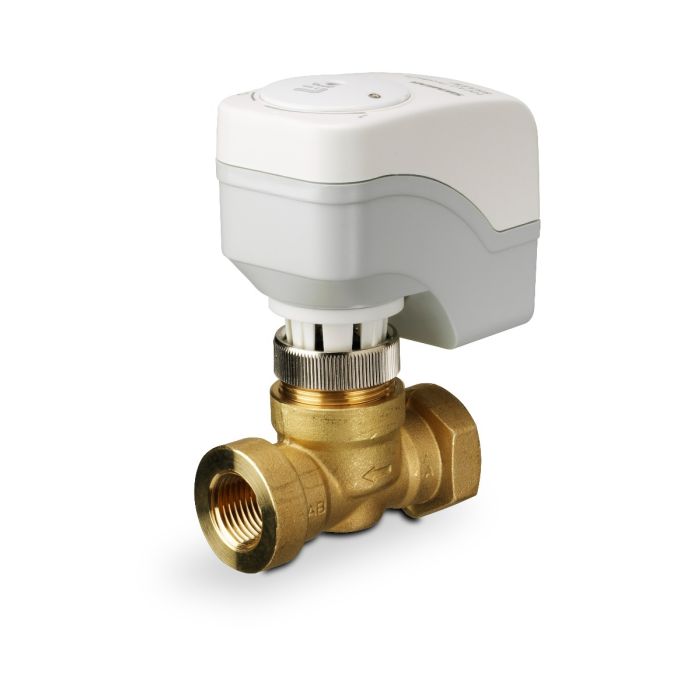

Siemens 245-00213 Zone Valve, 2 Way, 1 in., NPT, 7 Cv

Product Description

The Siemens Zone Valve, MPN 245-00213, is designed for use in HVAC systems that require modulating control of hot or chilled water. This valve features a direct-coupled actuator and a normally closed design for reliable operation.

• Direct-coupled installation without tools
• Manual override with a 3 mm hex wrench
• Visual position indication for easy monitoring

Product Highlights

This valve is suitable for applications including floor heating, fan coil units, and variable air volume systems. It operates on 24 VAC power and can support various control signals.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 245-00213

Technical Specifications

• Power Consumption: 2.5 VA
• Close-Off Pressure: 44 psi
• Flow Characteristic: Linear
• Operating Conditions: 41 F to 122 F (5 C to 50 C)
• Connection Type: NPT
• Size: 1 inch
• Flow Capacity (Cv): 7.0
• Fail Safe Mode: Fail In Place
