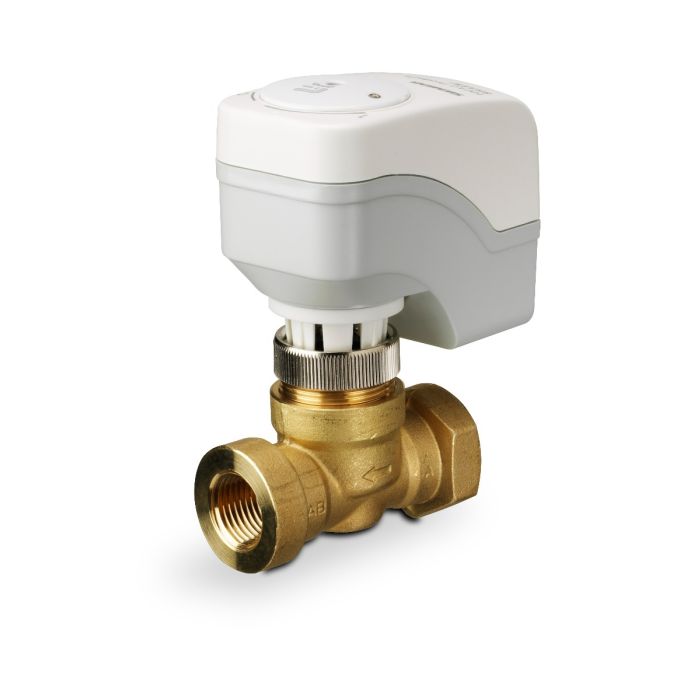

Product Description
The Siemens 245-00212 Zone Valve is a two-way valve designed for use in HVAC systems. This product features a 3/4 inch NPT connection and a flow capacity of 4.1 Cv. It is powered by 24 Volts and is equipped for modulating control with a 0-10 VDC output.
- Brass trim for durability
- Directly coupled actuator for easy installation
- Visual position indication for operational awareness
Product Highlights
This zone valve is suitable for both hot and chilled water applications and is ideal for use with radiators, floor heating, fan coil units, and more.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: 245-00212
Technical Specifications
-
Connection Type: NPT
-
Power Consumption: 2.5 VA
-
Flow Characteristic: Linear
-
Close-Off Pressure: 44 psi
-
Operating Conditions: 41 F to 122 F (5 C to 50 C)
-
Service: Hot or Chilled Water
-
Housing: NEMA 1
