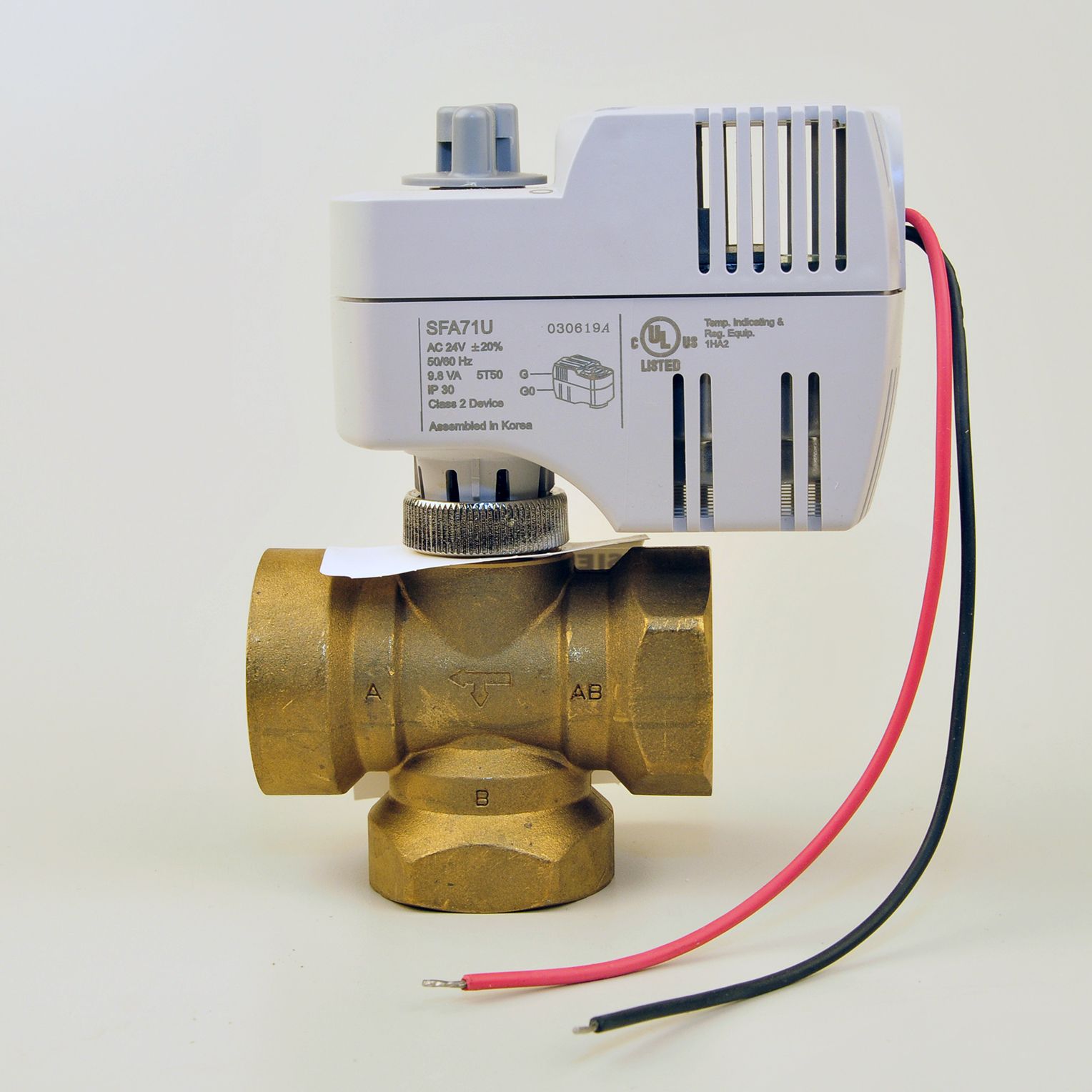

Siemens 242-00233 Zone Valve 24V 3-Way NPT CV7.0

Product Description

The Siemens 242-00233 is a zone valve featuring a three-way diverting pattern, designed to operate with a 24V power supply. It is equipped with a 7.0 CV on port A and a 5.9 CV on port B for efficient control of hot or chilled water systems. This valve is ideal for applications such as baseboard radiation and fan coil units.

• Three-way diverting valve pattern
• 7.0 CV on port A and 5.9 CV on port B
• Designed for 24V power supply

Product Highlights

The Siemens 242-00233 valve, manufactured in South Korea, has a 1-inch NPT connection and a 125 psi WOG body rating. With a maximum temperature capacity of 230 degrees Fahrenheit, it is suitable for a wide range of HVAC and water applications.

Product Information

Standard Information

• Brand: Siemens
• MPN: 242-00233
• Model: 599

Technical Specifications

• Valve Size: 1 inch
• Valve Connection: NPT
• Piping Configuration: 3-Way
• Body Material: Brass
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Actuator Type: On/Off
• Fail Safe Mode: AB-B
• Flow Capacity (Cv): 7.0
• Voltage: 24V
