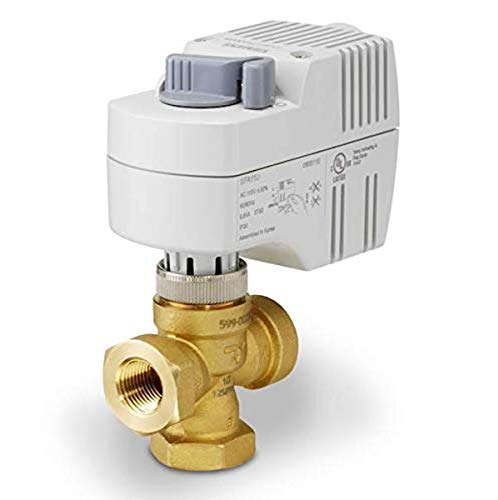

Siemens 242-00231 1/2 Inch 3-Way 24V Zone Valve

Product Description

The Siemens 242-00231 3-Way Zone Valve is a versatile HVAC component designed for controlling water flow in heating or cooling systems. This valve is equipped with a 1/2 inch NPT connection and operates on 24V power. Manufactured in South Korea, this valve ensures reliable performance in a variety of applications.

• 3-way diverting valve pattern
• 2.5 CV flow rate
• Brass body material

Product Highlights

This zone valve is suitable for use in hot or chilled water systems for radiators, floor heating, fan coils, and more. The valve supports applications requiring baseboard radiation and terminal fan coil units. The actuator ensures a failsafe mode to AB-B, enhancing system reliability.

Product Information

Standard Information

• Brand: Siemens
• MPN: 242-00231
• Model: 599

Technical Specifications

• Valve Size: 1/2 inch
• Connection Type: NPT
• Piping Configuration: 3-Way
• Body Material: Brass
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Flow Capacity (Cv): 2.5
• Fail Safe Mode: AB-B
• Weight: 2.30 lbs
• Voltage: 24V
• Actuator Type: On/Off
• Maximum Temperature: 230°F
• Replaces: Siemens (Powers) MXE72.15
