Product Description

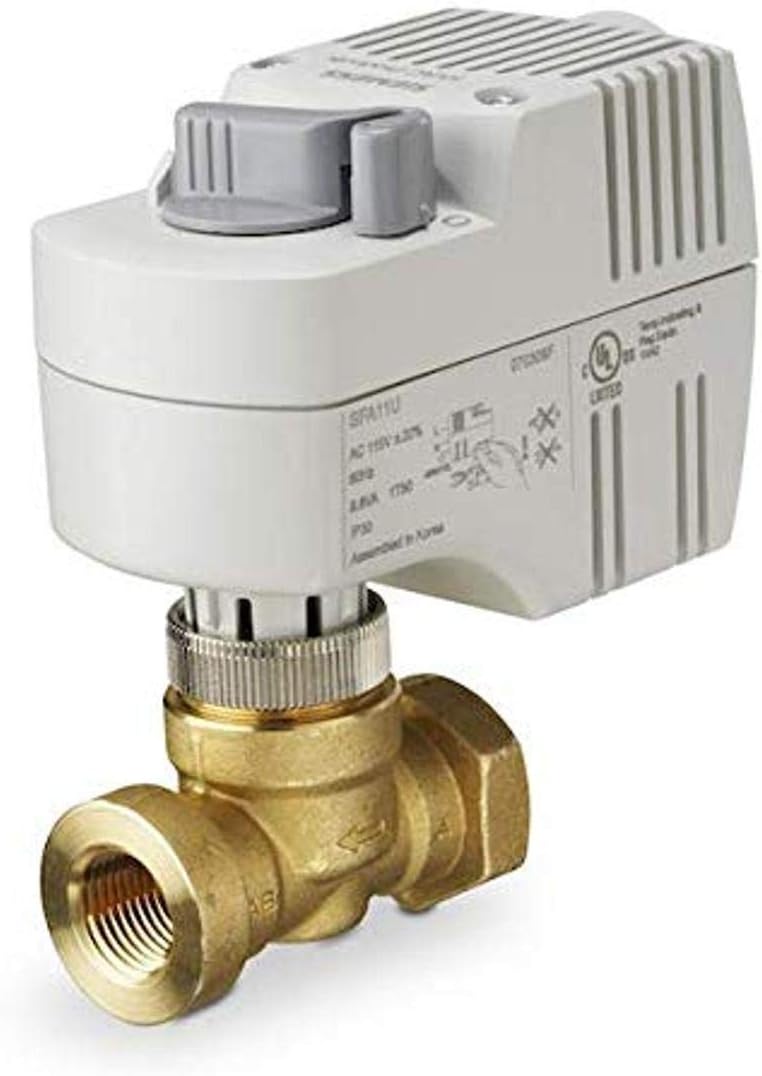

The Siemens 242-00211 Zone Valve ensures reliable control of HVAC systems. Engineered for precision, this 1/2 inch NPT valve operates at 24V and features a normally closed, 2-way configuration. It is especially suitable for systems using water with a temperature up to 230 degrees and a body rating of 125 psi.
- Efficient operation with a flow coefficient (Cv) of 2.5.
- Robust brass body enhances durability and performance.
- Designed for easy installation without tools and includes a manual override.
Product Highlights
This valve is ideal for applications including radiators, floor heating, fan coil units, and more. It supports various control signals and operates with minimal noise and energy consumption.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: 242-00211
-
Actuator Type: Electronic, normally closed
-
Maximum Operating Pressure: 44 psi for tight shutoff
Technical Specifications
-
Connection Type: NPT
-
Valve Size: 1/2 inch
-
Max Temperature: 230 degrees Fahrenheit
-
Body Material: Brass
-
Control Signal Options: Two-position, three-position, 0 to 10 Vdc
-
Bonnet Type: Universal, direct-coupled
