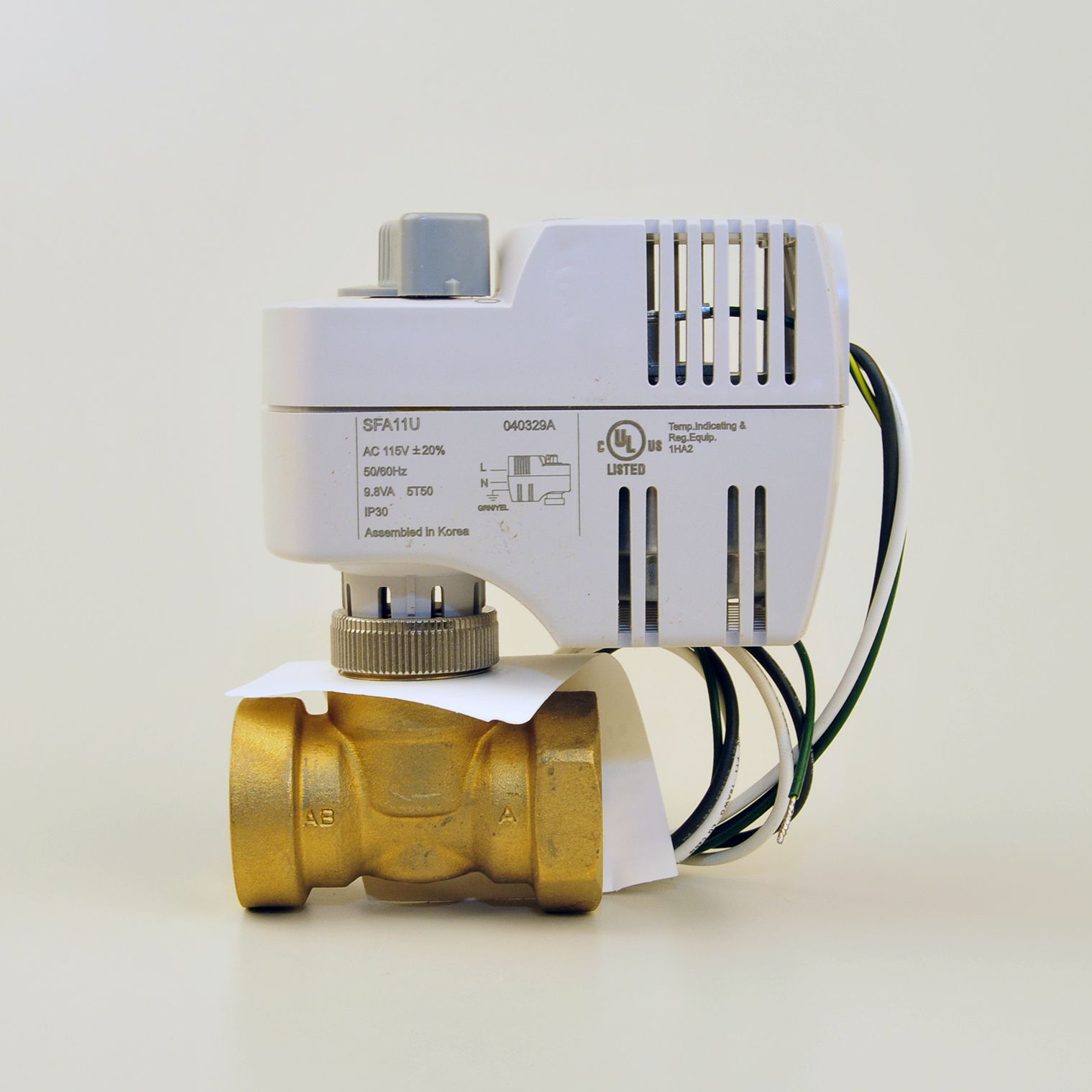

Siemens 240-00212 3/4 120V 2W NPT CV4.1 NC Valve

Product Description

The Siemens 240-00212 zone valve, part of the 599 series, is an essential component for HVAC systems. This 3/4 inch, 2-way, normally-closed valve operates at 120 volts and delivers a flow capacity of 4.1 CV. It's designed to control water flow and is widely used in residential and commercial applications.

• Valve Type: 2-Way
• Flow Capacity: 4.1 CV
• Connection Size: 3/4 inch NPT

Product Highlights

This valve is ideal for controlling water flow in HVAC systems. It features a direct-coupled universal bonnet, manual override, and visual position indication for easy maintenance and operation.

Product Information

Standard Information

• Brand: Siemens
• MPN: 240-00212

Technical Specifications

• Valve Size: 3/4 inch
• Flow Capacity (Cv): 4.1
• Valve Connection: NPT
• Body Material: Brass
• Maximum Pressure: 125 psi WOG
• Maximum Temperature: 230 degrees Fahrenheit
• Actuator Type: 2-Position
• Power Supply: 120V
