Siemens 1LE23211AA114AA3 Motor, 1 HP, 3600 RPM, SD100, 230/460 V

Product Description

The SIEMENS 1LE23211AA114AA3 is a 1 HP severe duty electric motor designed for industrial applications. Operating at 3600 RPM and compatible with 230V and 460V power supplies. Engineered for reliability and efficiency, this motor is an ideal choice for various automotive and industrial automation needs. Its robust construction ensures exceptional performance in harsh environments.

• Power Rating: 1 HP, providing adequate power for heavy-duty applications
• Speed: 3600 RPM, ensuring optimal operational efficiency
• Voltage Compatibility: 230/460 V, allowing for versatile electrical setups

Product Highlights

This motor is perfect for automotive assembly lines and other related applications requiring robust motor solutions and is suitable for environments that demand high resistance to wear and tear.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 1LE23211AA114AA3
• Country of Origin: Mexico

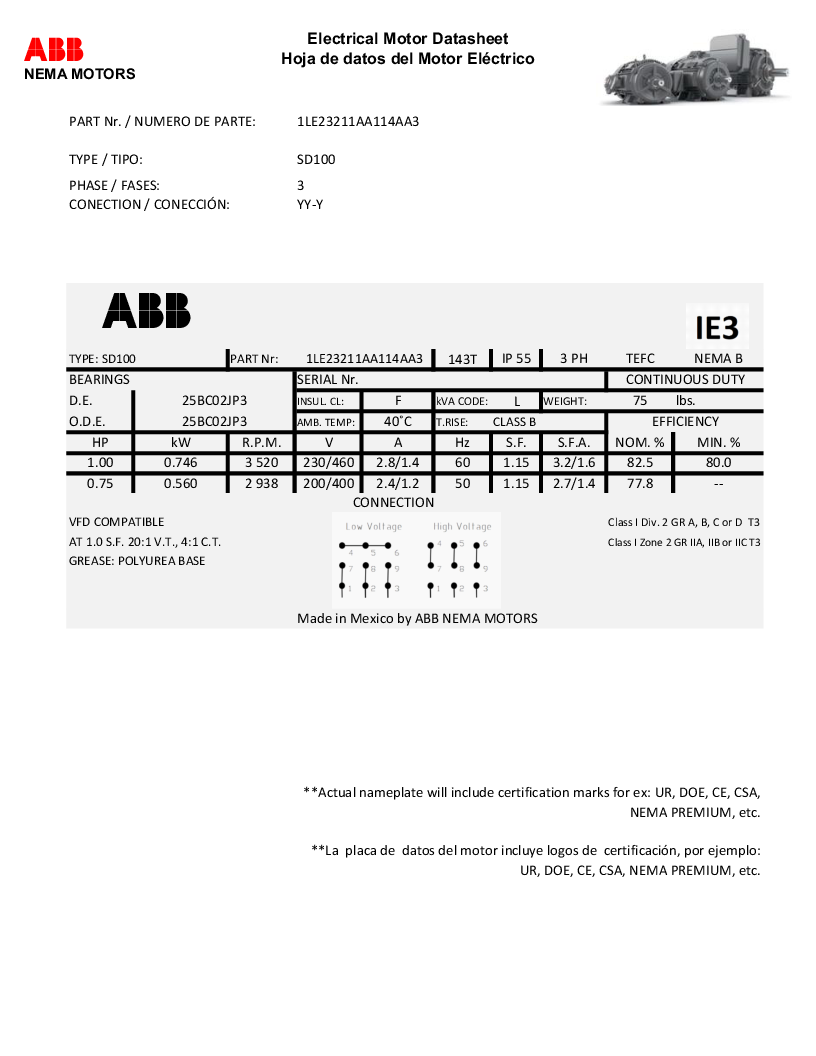

Technical Specifications

• Catalog Number: 1LE23211AA114AA3
• Enclosure: TEFC
• Frame: 143T
• Frame Material: Cast Iron
• Frequency: 60 Hz
• Output @ Frequency: 0.75 HP @ 50 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 460 V @ 60 HZ
• Current @ Voltage: 2.8 A @ 230 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 82.5 %
• Efficiency @ 50% Load: 79.3 %
• Efficiency @ 75% Load: 82.1 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 1.4 a
• Front Face Code: Standard
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• IP Rating: IP55
• KVA Code: L
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: LOCKED
• MLFB: 1LE23211AA114AA3
• Motor Lead Exit: Conduit Box
• Motor Lead Termination: Flying Leads
• Mounting Arrangement: F1
• No Load Current: 0.7 a
• Number of Poles: 2
• Overall Length: 14.20 IN
• Power Factor: 81.1
• Product Type: SD100
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Rodent Screen: NO RODENT SCREENS
• RoHS Status: ROHS COMPLIANT
• Rotor Inertia: 0.04790 lb-ft2
• Service Factor: 1.15
• Shaft Diameter: 0.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 2938 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Current: 12.0 a
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: NOT APPLICABLE
• Winding Thermal 1 Location: 00
• Winding Thermal 2: NOT APPLICABLE
• Winding Thermal 2 Location: 00
• Haz Area Temp Code: T3
• Horsepower: 1 hp
• Frequency Rating: 60 Hz
• Voltage Rating: 208 to 230/460 V AC
• Amperage Rating: 1.4 A
• Application Type: Severe Duty Motor
• Bearing Type: Ball
• Material: Cast Iron
• Mounting Type: Footed
• Number of Speeds: 1
• Rotation: CW/CCW
• Series: 1LE2
• Special Features: NEMA Premium Efficiency, Squirrel Cage Rotor, Stone Gray Painted, 4:1 Constant Torque, 20:1 Variable Torque
• Temperature Rating: -20 to 40 deg C
• Torque Rating: 1.5 ft-lb
• Type: Type SD100 2-Pole Continuous-Duty NEMA Low Voltage Standard
