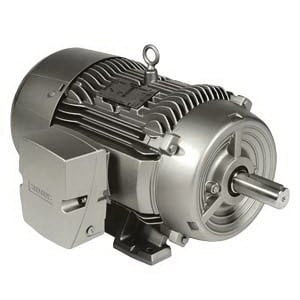

Siemens 1LE22213BA216AA3 GP100 General Purpose Electric Motor 50 HP 3600 RPM 326TS

Product Description

The Siemens 1LE22213BA216AA3 general purpose electric motor is designed for industrial applications. This electric motor delivers reliable performance for automotive manufacturing, process automation, and other demanding environments. It features a TEFC enclosure for protection against dust and moisture.

• Power Rating: 50 HP
• Speed: 3600 RPM
• Frame Size: 326TS
• Voltage: 230/460 V

Product Highlights

This motor is designed to minimize energy consumption, reduce operational costs, and improve sustainability. Built with high-quality materials ensuring long-lasting performance and reduced maintenance needs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 1LE22213BA216AA3
• Country of Origin: Mexico

Technical Specifications

• Enclosure: TEFC
• Frame: 326TS
• HP: 50 hp
• Hz: 60 Hz
• Phase: 3
• RPM: 3600 rpm
• Voltage: 230/460 V AC
• GTIN: 00662643929539
• UNSPSC: 26101112
• Country of Origin: Mexico
• Amperage Rating: 55 A
• Application Type: Compressor Motors, General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 4:1
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed/Floor
• Rotation: Bi-Directional
• Series: 1LE2
• Service Factor: 1.15
• Shaft Size: 1-7/8 in Dia x 3-3/4 in L
• Special Features: Squirrel Cage Motors
• Speed: 3600 rpm
• Temperature Rating: -20 to 40 deg C
• Torque Rating: 74 lb-ft
• Type: 2-Pole Continuous-Duty Low Voltage Standard Type GP100
• Variable Torque Speed Range: 20:1
• Enclosure Type: IP54, TEFC
