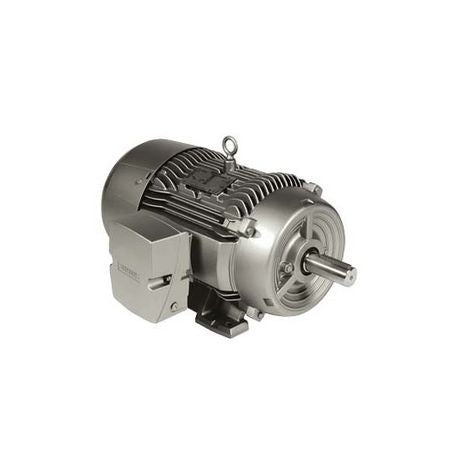

Siemens 1LE22212CB216AA3 SIMOTICS GP100 30 hp 230/460 VAC 60 Hz AC Motor

Product Description

The Siemens 1LE22212CB216AA3 is a continuous-duty NEMA low voltage standard AC motor designed for various industrial applications. This motor features an IP54 TEFC enclosure and can operate at thirty horsepower with a voltage rating of two hundred thirty to four hundred sixty VAC. It runs at 1800 rpm speed and utilizes a three-phase power supply.

• Powerful 30 hp, low voltage AC motor
• IP54 rated TEFC enclosure for enhanced protection
• Compatible with various applications including material handling and pumping

Product Highlights

This motor is an ideal choice for heavy-duty industrial tasks, enhancing efficiency and durability.

Product Information

Standard Information

• Brand: Siemens
• MPN: 1LE22212CB216AA3

Technical Specifications

• Type: Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard
• Horsepower: 30 hp
• Voltage Rating: 230/460 VAC
• Phase: 3
• Speed: 1800 rpm
• Frame: 286T
• Enclosure Type: IP54 TEFC
• Amperage Rating: 35 A
• Service Factor: 1.15
• Torque Rating: 89 ft-lb
• Dimensions: 17.32 in H x 29.38 in W
• Application: Material Handling, Pump, Fan, Compressor and other Industrial Applications
• Includes: Ground Lug
• Standard & Approvals: CE Certified, CSA Certified, cULus Recognized, EE Certified, WEEE (2012/19/EU)
