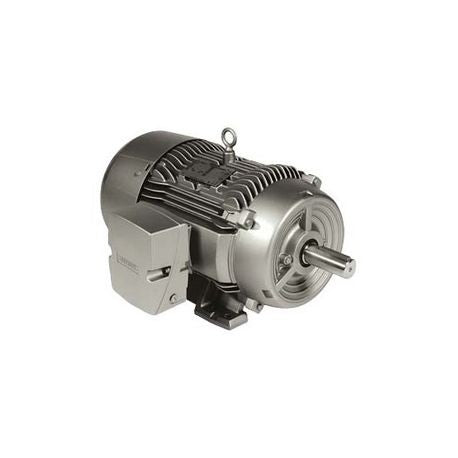

Siemens 1LE22211CB114EA3 SIMOTICS Type GP100 3 hp AC Motor TEFC 208 to 230 VAC 460 VAC

Product Description

The Siemens 1LE22211CB114EA3 is a SIMOTICS Type GP100 general-purpose AC motor. This continuous-duty motor features a totally enclosed fan cooled (TEFC) design and operates at three horsepower. It supports voltages of two hundred eight to two hundred thirty VAC as well as four hundred sixty VAC and runs at a speed of one thousand eight hundred rpm. Ideal for a range of applications such as material handling, pumping, and fans.

• TEFC/IP54/IP55 enclosure rating
• Meets NEMA Premium efficiency standards
• Designed for high reliability and reduced operating costs

Product Highlights

This motor is built for durability and efficiency. Its robust design makes it suitable for various industrial uses. The high-performance rotor supports smooth operation and reduced wear.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Horsepower: 3 hp
• Voltage Rating: 208 to 230 VAC, 460 VAC
• Speed: 1800 rpm
• Phase: 3
• Frame: 182T
• Mounting Type: C-Face Footed
• Insulation Class: Class F
• Torque Rating: 9 ft-lb
• Dimensions: 11.1 inches H x 16.7 inches W
• Temperature Rating: -20 to 40 deg C
• Service Factor: 1.15
