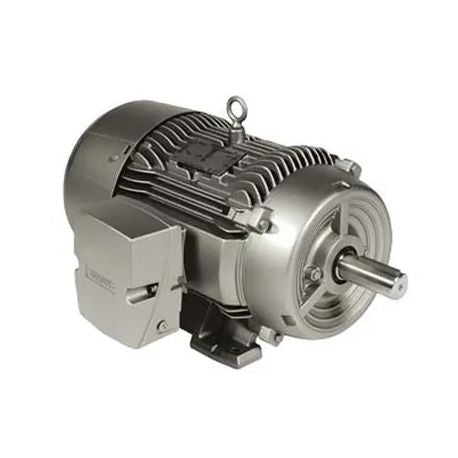

Siemens 1LE22211AB414EA3 SIMOTICS 2 hp Continuous-Duty AC Motor TEFC/IP54/IP55 Enclosure

Product Description

The Siemens SIMOTICS 1LE22211AB414EA3 is a Type GP100 low voltage AC motor with a power rating of two horsepower. This motor is designed for continuous duty and operates effectively in various industrial applications. It features a totally enclosed fan cooled (TEFC) design with an IP54/IP55 rated enclosure for protection against dust and moisture. The motor is suitable for use with either 208 to 230 VAC or 460 VAC, making it versatile for different setups.

• Continuous-duty design for reliable operation
• TEFC/IP54/IP55 enclosure for enhanced durability
• 2 hp capacity with 1800 rpm speed for powerful performance

Product Highlights

This motor excels in applications such as material handling, pumps, fans, and compressors due to its robust build and high efficiency.

Product Information

Standard Information

• Brand: Siemens
• Type: GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard

Technical Specifications

• Horsepower: 2 hp
• Speed: 1800 rpm
• Voltage Rating: 208 to 230 VAC, 460 VAC
• Amperage Rating: 2.8 A
• Phase: 3
• Frame Size: 145TC
• Insulation Class: Class F
• Enclosure Type: TEFC/IP54/IP55
• Mounting Type: C-Face Footed
• Temperature Rating: -20 to 40 deg C
• Dimensions: 9.1 in H x 14.4 in W
• Application: Material Handling, Pump, Fan, Compressor and other Industrial Applications
