Siemens 1FK71052AF711RH1 Motor,sync,3ac,48nm,8.17kw,3000rpm

Product Description

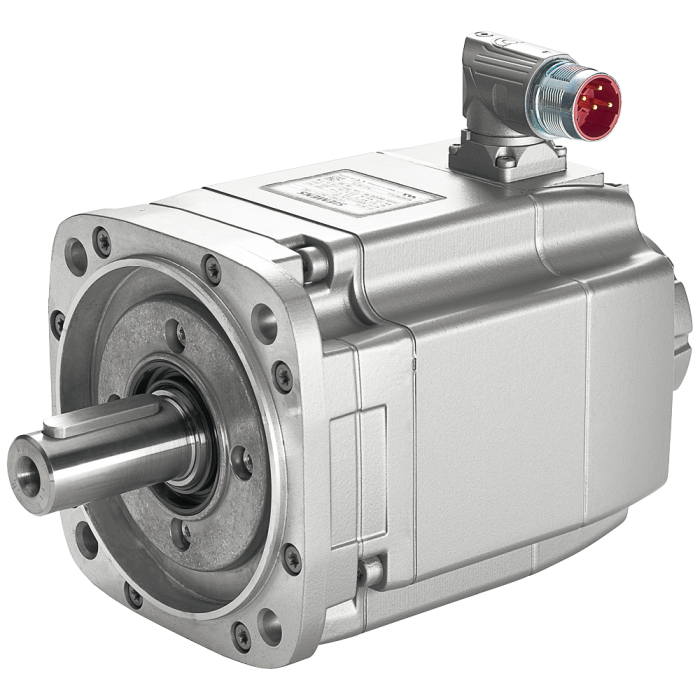

The SIEMENS 1FK71052AF711RH1 is a SIMOTICS S synchronous motor. This compact permanent-magnet synchronous motor features natural cooling and is designed for operation without external cooling, dissipating heat through the motor surface. It can be combined with the SINAMICS S120 drive system for a powerful system with high functionality.

• With AM20DQI encoder, DRIVE-CLiQ interface
• Space-saving installation thanks to extremely high power/weight ratio
• For universal applications

Product Highlights

Compact, powerful synchronous motor with natural cooling and high overload capability, suitable for various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 1FK71052AF711RH1
• Country of Origin: Germany

Technical Specifications

• Alternate Mfr Part Number: 1FK71052AF711RH1
• Brand: SIEMENS
• Manufacturer Part Number: 1FK71052AF711RH1
• Application: Machine Tools, Robots and Handling Systems, Wood, Glass, Ceramics and Stone Working, Packaging, Plastics and Textile Machines and Auxiliary Axes
• Mounting Type: IM B5/IM V1/IM V3
• Torque Rating: 48.00 NM Static, 26.00 NM Rated
• Enclosure Type: IP65
• Insulation Class: Class F
• Special Features: Permanent Magnet Synchronous
• Temperature Rating: -5 to 104
• Type: Compact Natural Cooling
• Speed Rating: 3000 rpm
• Series: 1FK7
• Horsepower: 11
• Shaft Size: 38 mm Dia x 100 mm H
• Amperage Rating: 18
• Manufacturer: Siemens
• Reference: 1FK71052AF711RH1
• Main function: AC servo motor
• Product series / family name: SIMOTICS S-1FK7 series
• Functions: AC servo motor
• Design: pre-assembled multi-turn absolute encod. (8-bit/turn x 4096 turns = 20-bit)
• Rated current: 18A (510-720Vdc)
• Rated active power (kW): 8.2kW / 8200W (510-720Vdc)
• Rotational speed: 3000rpm (510-720Vdc)
• Torque: 26Nm
• Stall torque: 48Nm static
• Moment of inertia: 0.0154kg.m2 / 15400kg.mm2
• Sound / Noise level: 67-73dB
• Mounting mode: 192x192mm flange
• Resolution: 20-bits total resolution
• Degree of protection: IP65
• Material: rare-earth magnet
• Ambient air temperature for operation: 40 00b0C
• Technical compatibility with: SINAMICS S120 drive
• Application type: Machine tools
• Manufacturer product status: Commercialized
• Equivalent to: 1FK71052AF711RH1
• Voltage Rating: 380-480V AC
• Speed: 3000
