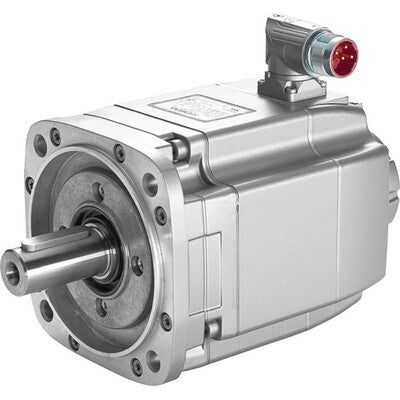

Siemens 1FK71012AC711RH1 Simotics S Compact Natural Cooling Servo Motor, 5.77 hp, 9.7 A, 2000 rpm Speed, IM B5/IM V1/IM V3 Mount 1FK71012AC711RH1

Product Description

The SIEMENS 1FK71012AC711RH1 Simotics S-1FK7 motors are compact permanent magnet synchronous motors. These motors can be perfectly adapted to any application. The S-1FK7 motors can be combined with the SINAMICS S120 drive system. It has 5.77 hp, 9.7 A, 2000 rpm Speed, IP65 Enclosure, and IM B5/IM V1/IM V3 Mounting.

• With AM20DQI encoder, DRIVE-CLiQ interface
• Space saving installation due to extremely high power density
• Wide range of motors
• For universal applications

Product Highlights

The SIMOTICS S-1FK7 motors satisfy the permanently increasing demands of state of the art machine generations.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 1FK71012AC711RH1
• Country of Origin: Germany

Technical Specifications

• UNSPSC: 26101109
• Application: Machine Tools, Robots and Handling Systems, Wood, Glass, Ceramic and Stone Working, Packaging, Plastics and Textile Machines and Auxiliary Axes
• Mounting Type: IM B5/IM V1/IM V3
• Torque Rating: 20.5
• Enclosure Type: IP65
• Insulation Class: Class F
• Special Features: Permanent Magnet Synchronous
• Temperature Rating: 104
• Type: Compact Natural Cooling
• Speed: 2000
• Series: 1FK7
• Horsepower: 5.77
• Shaft Size: 38 mm Dia x 100 mm H
• Amperage Rating: 9.7
• Main function: AC servo motor
• Product series / family name: SIMOTICS S-1FK7 series
• Functions: AC servo motor
• Design: pre-assembled multi-turn absolute encod. (8-bit/turn x 4096 turns = 20-bit)
• natural cooling: natural cooling
• 100mm height plain shaft: 100mm height plain shaft
• holding brake: holding brake
• Permanent magnet motor: Permanent magnet motor
• Rated current: 12.3A (stall)
• Rated active power (kW): 4.3kW / 4300W (600Vac)
• Rated power (HP): 5.8HP
• Rotational speed: 2000rpm (600Vac)
• Stall torque: 27Nm static
• Moment of inertia: 0.0087kg.m2 / 870kg.mm2
• Sound / Noise level: 70dB
• Connection type: M40 angled connector (rotatable)
• Mounting mode: 192x192mm flange
• Resolution: 20-bits total resolution
• 8-bits/turn x 4096 turns (12-bits): 8-bits/turn x 4096 turns (12-bits)
• Material: rare-earth magnet
• Technical compatibility with: SINAMICS S120 drive
• Application type: Machine tools; feed drives; auxiliary axes
• Robots: Robots
• Handling systems: Handling systems
• Manufacturer product status: Commercialized
• Equivalent to: 1FK71012AC711RH1
• UPC code: 887621259365
• Compliant with standard(s): EN/IEC60034-5
• EN/IEC60034-7: EN/IEC60034-7
• DIN 748-3 / IEC 60072-1: DIN 748-3 / IEC 60072-1
• DIN 42955 / IEC 60072-1: DIN 42955 / IEC 60072-1
• EN/IEC60034-14: EN/IEC60034-14
• EN/IEC60034-1: EN/IEC60034-1
• ISO 1680: ISO 1680
• cURus: cURus
• Location of origin: Germany
