Product Description

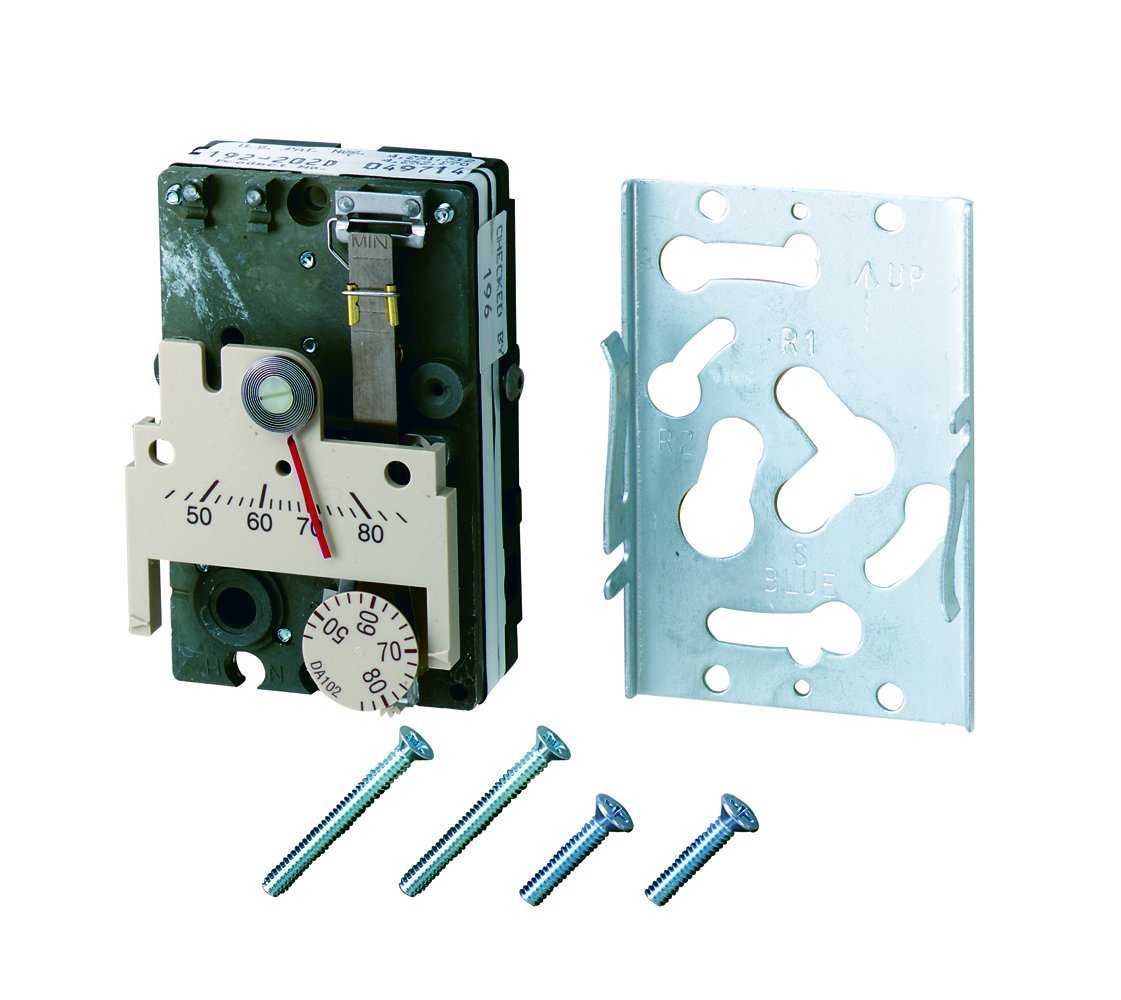

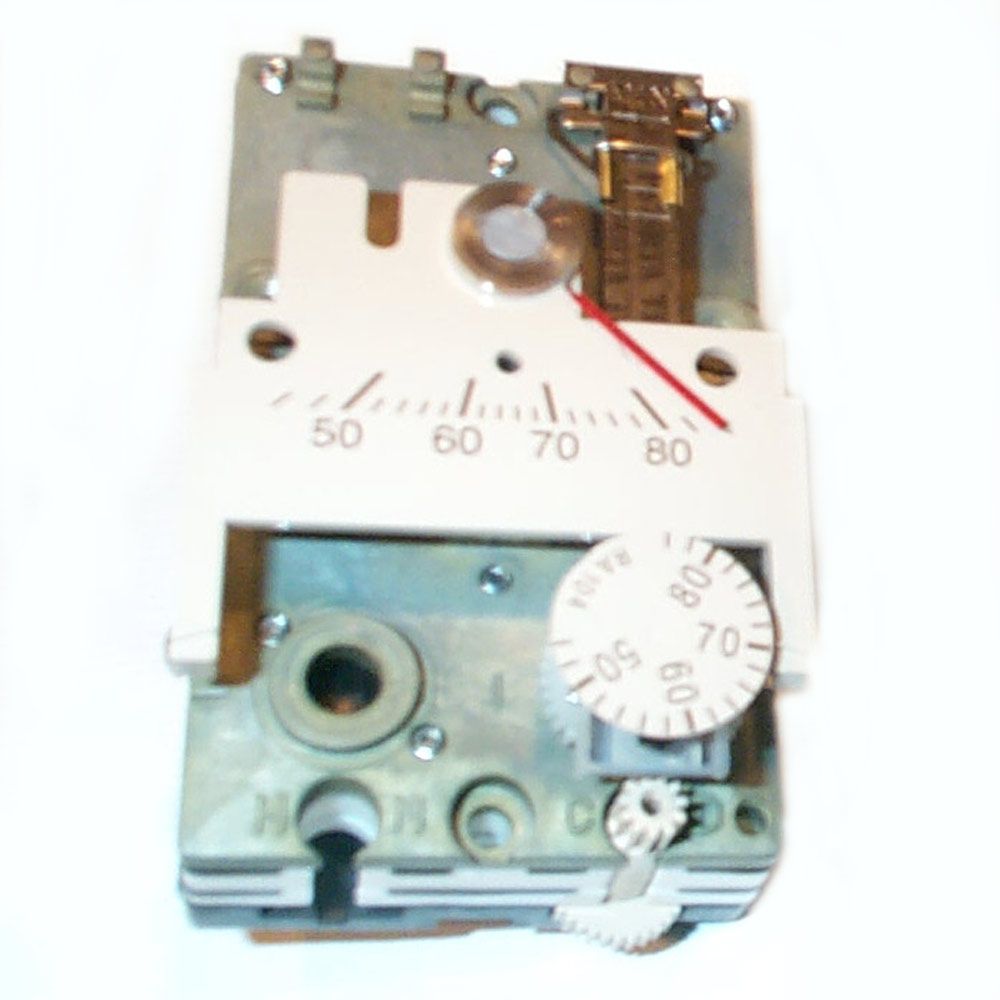

The Siemens 192-203 is a pneumatic room temperature thermostat suitable for heating and cooling applications. It controls pneumatic valve and damper actuators effectively within a temperature range of forty-five to eighty-five degrees Fahrenheit. This device utilizes a sensitive bimetal that responds to temperature changes, modulating control air through a flapper nozzle. It includes a wall mounting plate for easy installation in various terminal boxes.
- Single set point dial with Fahrenheit scale.
- Integral field adjustable limit stops for customized control.
- Control pressure test port accessible without removing cover.
Product Highlights
The Siemens 192-203 is designed for efficient temperature control in commercial and institutional environments. It employs advanced technology for accurate sensing and features a user-friendly interface for quick adjustments.
Product Information
Standard Information
-
Brand: Siemens Building Technology
-
MPN: 192-203
Technical Specifications
-
Control Type: Pneumatic
-
Temperature Range: 45 to 85 degrees Fahrenheit
-
Max Air Pressure: 30 psi
-
Air Connections: 5/32 inch Barb
-
Mounting Style: Vertical
-
Weight: 0.63 lbs
-
Dimensions: Height 3.375 inches, Width 2.125 inches, Depth 1.625 inches
-
Includes: Wall mounting plate and screws
