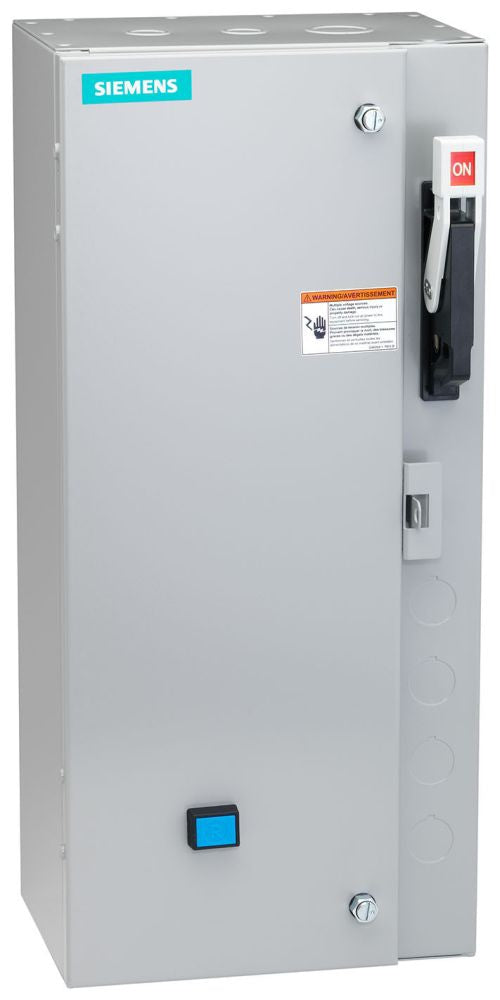

Siemens 18FUF92BA Starter, Combo 10 HP, 15 HP, 25 HP

Product Description

The SIEMENS 18FUF92BA is a combination motor starter designed for full voltage, non-reversing operation. It supports power ratings of 10 HP at 200/208 VAC, 15 HP at 220/230 VAC, and 25 HP at 460/480/575/600 VAC. Features a 50A circuit breaker and a solid-state overload relay with a current range of 13 to 52A. Suitable for indoor, general-purpose applications.

• Equipped with a 50A circuit breaker for robust protection.
• Features a solid-state overload relay with manual/automatic/remote reset.
• Designed for heavy-duty applications with a NEMA 1 enclosure.

Product Highlights

This combination starter offers reliable performance and protection for various motor applications, ensuring efficiency and durability.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 18FUF92BA
• Country of Origin: USA

Technical Specifications

• Type: SZ 2 Class 18 Full Voltage Heavy Duty Non-Reversing
• Power Rating/Voltage: 10 HP 200/208 Volt AC, 15 HP 220/230 Volt AC, 25 HP 460/480/575/600 Volt AC
• Phase: 3
• Coil Voltage: 110 VAC, 110 to 120 VAC, 190 to 220 VAC, 220 to 240 VAC
• Size: NEMA 2
• Enclosure Type: NEMA 1
• Disconnect: Circuit Breaker
• Disconnect Amps: 50 Amp
• Overloads: Solid State 3-Phase Manual/Automatic/Remote Reset, Overload Current Range 13 to 52 Amp
• Construction: Standard NEMA
• Current Rating: 45 Amp
• Auxiliary Contact: 1NC
• Control Type: Heavy Duty
• Terminal Type: Screw
• Operating Temperature: -4 to 104 Deg F
• Application: Indoor General Purpose Use
• Approval: UL 508, CSA 22.2
• Reset Type: Automatic/Manual/Remote
• Overload Relay: Solid-State
• Voltage Rating: 575/600
• Connection Type: Box Lug
• Frequency Rating: 50/60
• Motor Power: 10 hp, 15 hp, 25 hp
• Alternate Mfr Part Number: 18FUF92BA
