Siemens 17DUD92BA11 Starter, Non-Reversing; 220-240/110-120V AC Coil; 5.5-22.0A FLA

Product Description

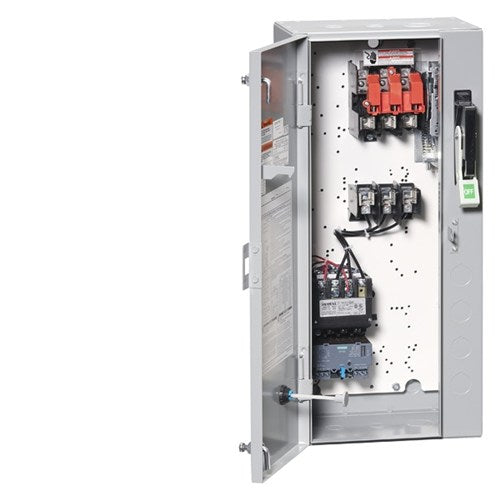

The SIEMENS 17DUD92BA11 is a combination full voltage non-reversing magnetic starter. This NEMA Size 1 starter has a fusible disconnect and a solid-state overload relay. It is designed for NEMA 600V AC applications and supports a motor FLA of 5.50-22.00A. The coil voltage is 220-240/110-120VAC at 60Hz, and the enclosure is NEMA type 1.

• Combination full voltage non-reversing magnetic starter
• Solid State Overload Relay with an OLR amp range of 5.5-22A
• 30A fusible disconnect

Product Highlights

The SIEMENS 17DUD92BA11 starter is suitable for indoor, general-purpose use and provides reliable motor control and protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 17DUD92BA11
• Country of Origin: United States

Technical Specifications

• Starter Type: Combination Full Voltage Non-Reversing Magnetic
• Rating - Volts: NEMA 600V AC
• Size: NEMA Size 1
• Disconnect: Fusible
• Disconnect Amps: 30A
• Phase: 3
• Coil Voltage: 220-240/110-120VAC 60Hz
• Enclosure Type: NEMA 1
• Overload Relay: Solid State
• Motor FLA: 5.50-22.00A
• Degree of protection (NEMA): 1
• External reset possible: true
• Number of auxiliary contacts as normally closed contact: 0
• Number of auxiliary contacts as normally open contact: 1
• Overload release current setting: 5.5 A
• Rated control supply voltage Us at AC 60HZ: 110 V
• Voltage type for actuating: AC
• With short-circuit release: true
