Product Description

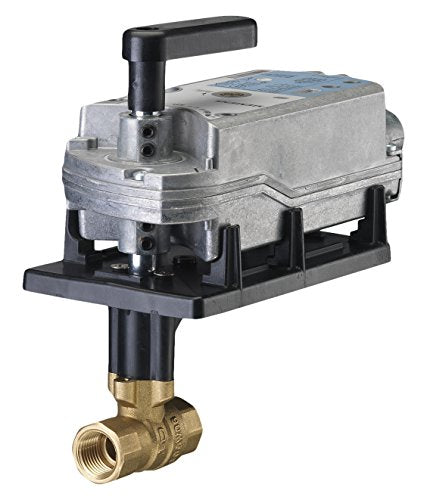

The Siemens 172P-10316S features a two-way ball valve assembly with a two-position spring return actuator designed to control hot or chilled water. The stainless steel ball and stem enhance durability while dual auxiliary switches enhance functionality.
- 200 psi close-off with ANSI Class IV leakage for robust performance.
- Configured with chrome-plated brass or 316 stainless steel ball and stem for extended product life.
- The actuator and plate can be rotated in 90-degree increments, providing installation flexibility.
Product Highlights
This valve assembly is ideally suited for applications in HVAC systems such as air handlers, fan coil units, and more. Its manual operating handle ensures control continuity during power interruptions.
Product Information
Technical Specifications
-
Brand: Siemens
-
MPN: 172P-10316S
-
Material: Stainless Steel
-
Connection Size: 1 inch FNPT x FNPT
-
Voltage: 24V AC
-
Actuator Type: Floating, Non-Spring Return
-
Body Pattern: 2-Way
-
Weight: 4.6 lbs
-
Dimensions: 9.55 inches depth, 9.2 inches width, 4.9 inches height
-
Flow Capacity (Cv): 63
