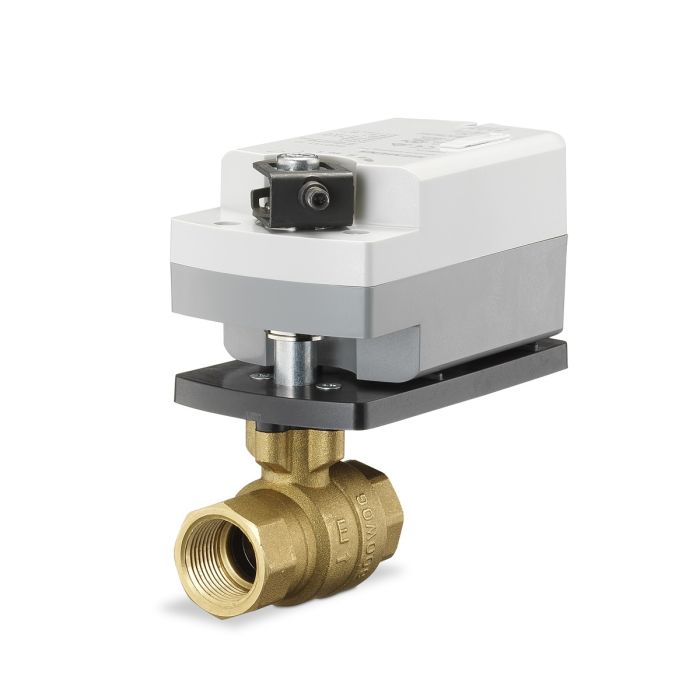

Siemens 172L-10311 Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Siemens 172L-10311 is a two-way ball valve assembly designed for various HVAC applications. It features a three-quarter inch size and a 25 Cv flow capacity. This model operates on 120 VAC, providing reliable performance with a spring return mechanism. Its direct coupled actuator delivers efficient control in a compact design.

• Blow-out proof stem withstands high pressure.
• Universal mounting plate allows easy installation.
• Operating handle for manual operation.

Product Highlights

Designed for tough environments, the Siemens 172L-10311 ensures durability and efficient control of fluid flow.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 172L-10311

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 10 VA Running, 7 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F To 130 F
• Electrical Connection: 3 ft. 18 AWG Appliance Cable
