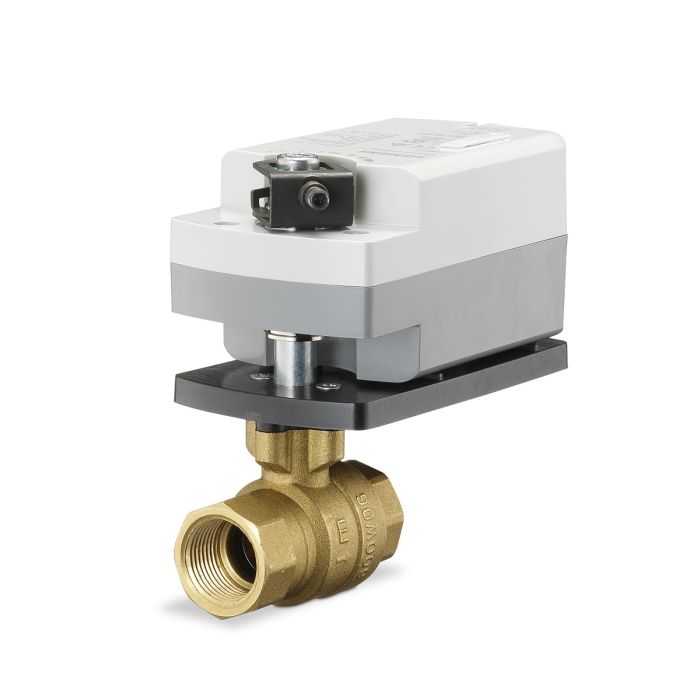

Siemens 172K-10300S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 172K-10300S is a ball valve assembly designed for reliable performance in HVAC systems. This product features a two-way design, suitable for various applications. The assembly includes a stainless steel ball and stem along with a direct-coupled actuator. It operates at a power of 24 VAC and has a torque rating of twenty in-lbs with spring return functionality.

• Blow-out proof stem withstands high pressure
• Universal mounting plate with rotation capability
• Manual operation handle included

Product Highlights

This ball valve assembly is perfect for modulating control applications. It can easily accommodate water and a 50% water-glycol solution. The actuator is designed to meet standard operating conditions ranging from negative twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 172K-10300S

Technical Specifications

• Housing: NEMA 1
• Power Consumption: 4.5 VA running, 3.5 VA holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG plenum cable
• Service: Water, 50% water-glycol solution
• Torque Rating: 20 in-lb
