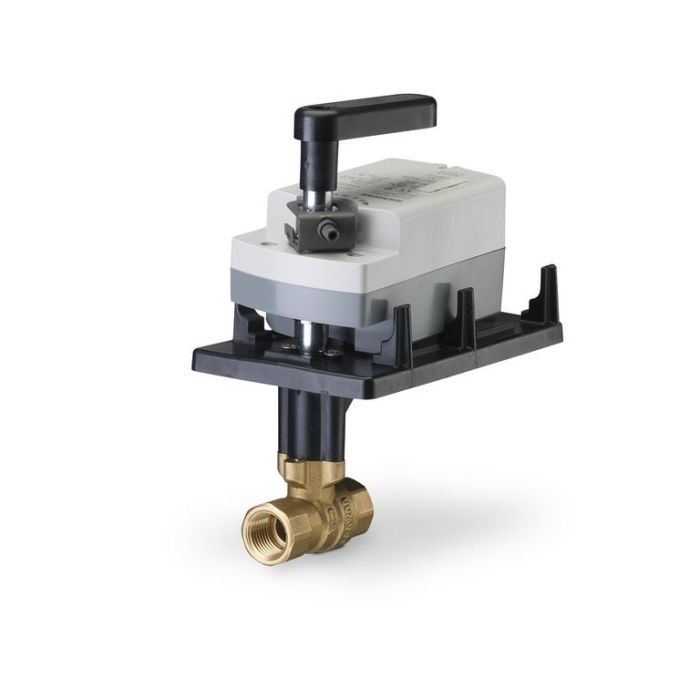

Siemens 172J-10301S Ball Valve Assembly, 2 Way, 0.5 Cv, Stainless Steel

Product Description

The Siemens 172J-10301S is a ball valve assembly designed for efficient flow control in HVAC applications. This unit features a two-way stainless steel ball valve with a half-inch size. It is equipped with a direct coupled actuator that requires 24 VAC power supply. The valve has a blow-out proof stem, ensuring durability under high pressure conditions.

• Designed for water and water-glycol solutions
• Spring return actuator for reliable operation
• Rotatable actuator plate for flexible installation in tight spaces

Product Highlights

This ball valve assembly is perfect for controlling fluid flow in HVAC systems where precise regulation is essential. It supports applications requiring capabilities like floating control and normally closed configurations.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 172J-10301S

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 4 VA Running, 3 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
