Siemens 172J-10300S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

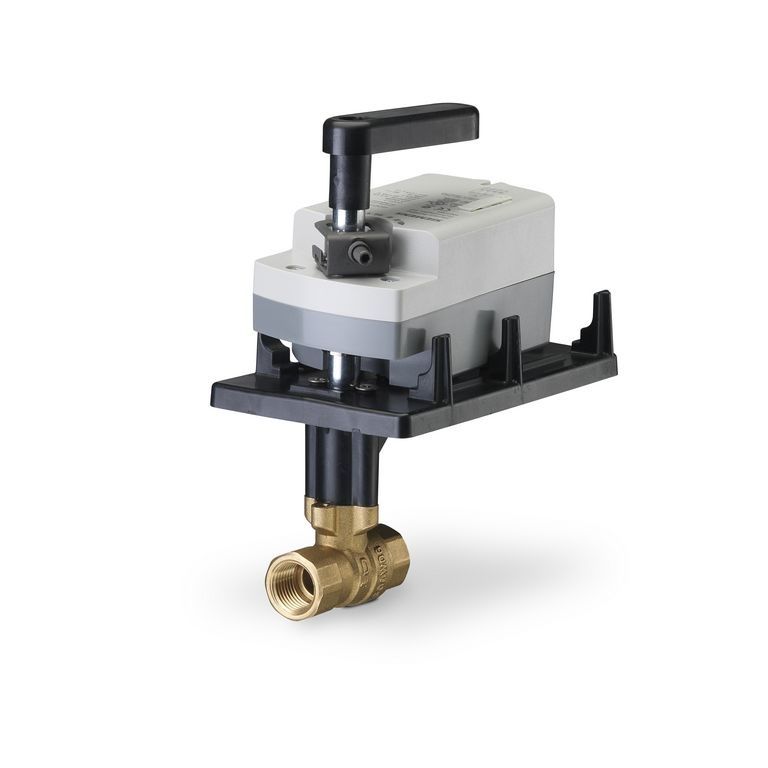

The Siemens 172J-10300S is a two-way ball valve assembly designed for efficient fluid control. It features a half-inch size and is ideal for HVAC control components. This assembly includes a stainless steel ball and stem, ensuring durability and reliability in various operating conditions. The direct coupled actuator provides precise control over the valve operation.

• Stainless steel construction for longevity and performance
• Floating control with normally closed functionality
• Spring return actuator for reliable closure

Product Highlights

This valve assembly is suitable for water and water-glycol solutions, operating effectively in temperatures ranging from -25 degrees Fahrenheit to 130 degrees Fahrenheit. The unit is designed to withstand close-off pressures up to 200 psi.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 172J-10300S

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 4 VA Running, 3 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
