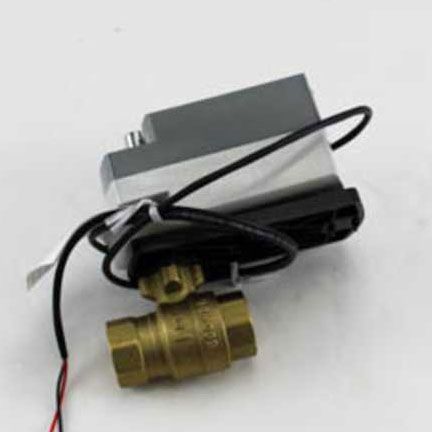

SIEMENS 172H-10311 Ball Valve Assembly 0.75 inches Two-Way 25CV

Product Description

The Siemens 172H-10311 is a high-quality two-way ball valve assembly, featuring a 0.75-inch valve size and a 25 Cv flow capacity. Constructed with a chrome-plated brass ball and a brass stem, this product ensures durability and reliable performance in HVAC systems.

• Fail-safe, normally closed actuator
• Maximum operating pressure of 200 psi
• Accepts 24V AC/DC power supply

Product Highlights

Ideal for applications requiring precise control over fluid handling, the Siemens 172H-10311 valve is robust for industrial settings. Its fail-safe actuator provides added security by defaulting to a closed position in power loss scenarios.

Product Information

Standard Information

• Brand: Siemens
• MPN: 172H-10311

Technical Specifications

• Valve Type: Two-way, normally closed
• Flow Capacity: 25 Cv
• Size: 0.75 inches
• Body Material: Brass with chrome plating
• Stem Material: Brass
• Supply Voltage: 24V AC/DC
• Maximum Temperature: 250 degrees Fahrenheit
