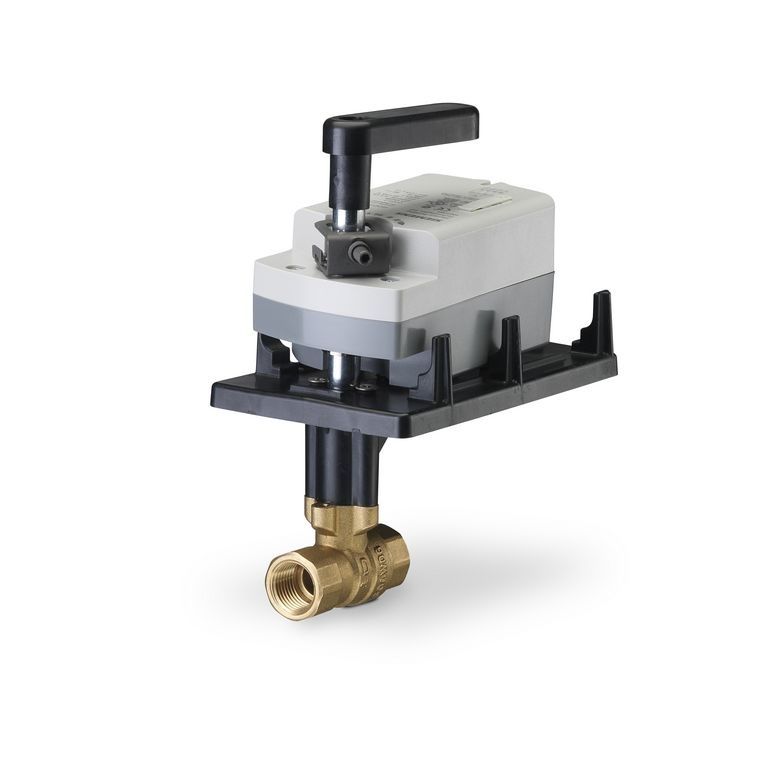

Siemens 172H-10301S Ball Valve Assembly, 2 Way, 0.5 Cv Stainless Steel

Product Description

The Siemens 172H-10301S is a two-way ball valve assembly designed for precise control of fluids in HVAC systems. This product features a stainless steel ball and stem, which ensure durability and reliability in various operating conditions.

• Handles up to 200 psi close-off pressure.
• Direct coupled actuator with a torque rating of twenty inch-pounds.
• Spring return functionality for reliable operation.

Product Highlights

This valve is ideal for applications that require efficient control of water and water-glycol solutions. The actuator can be easily mounted and rotated in ninety-degree increments, ensuring versatility in installation.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 172H-10301S

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 6.5 VA Running, 4 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
