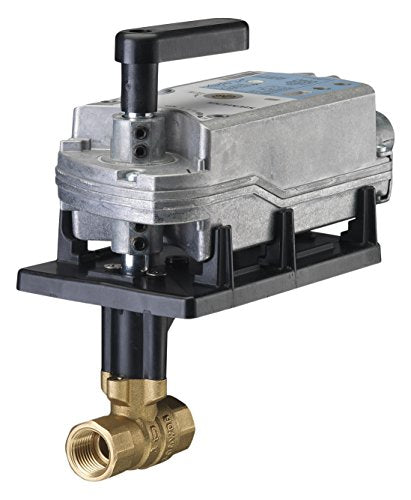

Siemens 172G-10316 1 Inch 2W 63CV Ball Valve + GMA161.1P NC

Product Description

The Siemens 172G-10316 is a durable 1-inch ball valve assembly suitable for an array of HVAC applications. This ball valve is designed with a chrome-plated brass ball and brass stem, ensuring reliable operation and resistance to corrosion. Equipped with a GMA161.1P NC fail-safe actuator and a 200 psi close-off pressure, this product meets the challenging demands of HVAC systems control.

• Efficient flow control with a Cv (flow coefficient) of 63, ideal for regulating fluid flow in various systems.
• Rated for up to 600 body pressure, suitable for high-pressure applications.
• Can operate at maximum temperatures up to 250 degrees Fahrenheit, accommodating a range of system environments.

Product Highlights

This valve is designed for easy installation and maintenance, featuring top-quality materials for longevity and performance. Its versatility makes it an excellent choice for professionals in the building technology sector.

Product Information

Standard Information

• Product Type: Valve
• Brand: Siemens

Technical Specifications

• Valve Size: 1 inch
• Connection Type: NPT (National Pipe Thread)
• Material: Brass, Chrome-Plated
• Pressure Rating: 200 psi close-off
• Temperature Capability: Up to 250 degrees Fahrenheit
