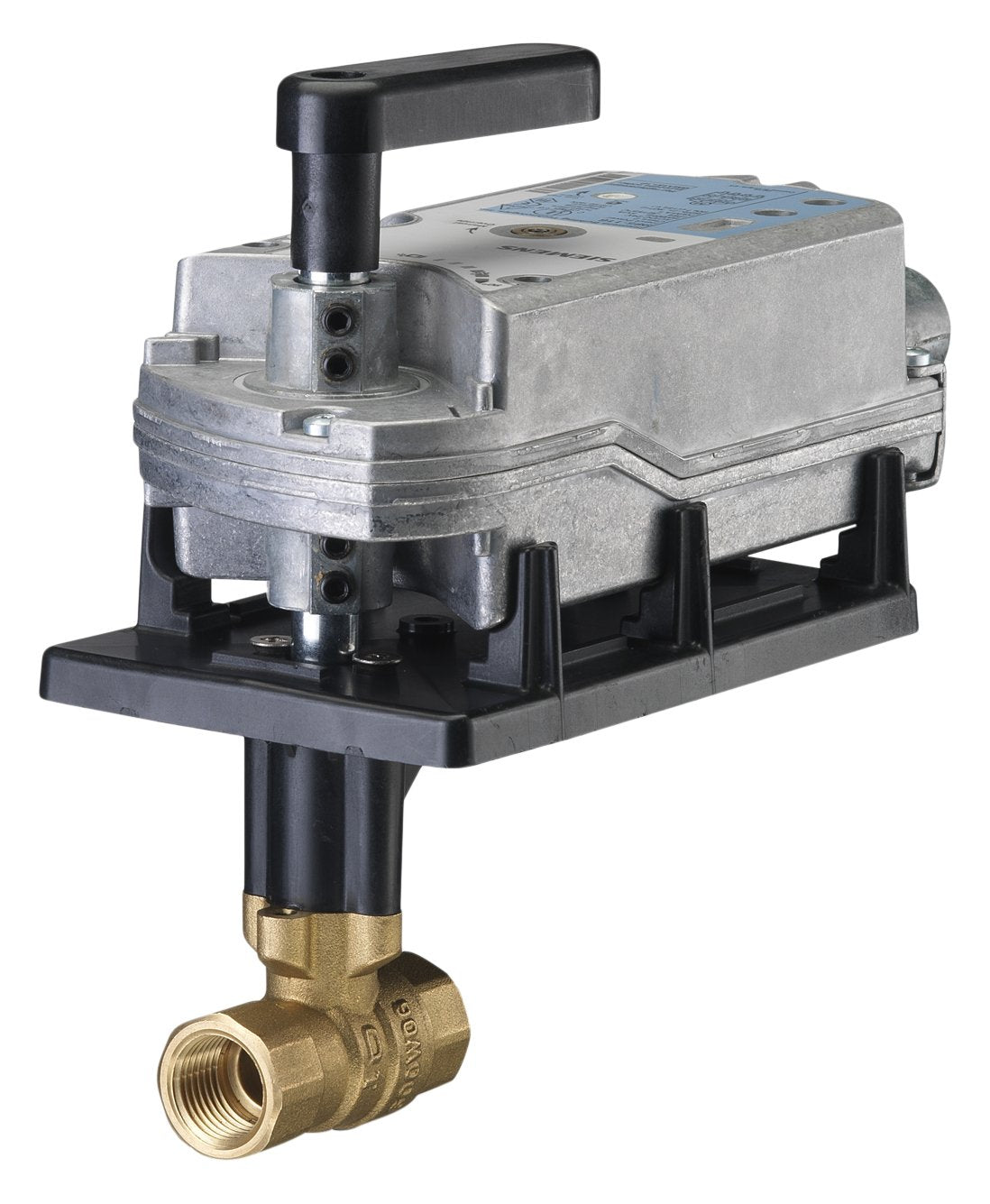

Siemens 172G-10313 1 2W 16CV BALL Valve+GMA161.1P NC

Product Description

The Siemens 172G-10313 is a two-way ball valve designed for precise flow control. This valve features a one-inch size and a flow coefficient of 16, making it suitable for various HVAC applications. It includes a chrome-plated brass ball and a brass stem, ensuring durability and resistance against corrosion. The actuator operates on a zero to ten-volt signal and is normally closed (NC) with a fail-safe mechanism for reliability.

• Two-way valve pattern
• Rated for a maximum close-off pressure of 200 psi
• Rated for a maximum temperature of 250 degrees Fahrenheit

Product Highlights

This valve is ideal for controlling the flow of air or liquid in HVAC systems.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• Product Type: Valve

Technical Specifications

• MPN: 172G-10313
• Body rating: 600 psi
• Valve size: 1 inch
• Shipping weight: 4.41 lbs
• Item weight: 3.60 lbs
• Actuator type: Fail-safe actuator
• Flow coefficient (cv): 16
• Close-off pressure: 200 psi
• Max temperature: 250 degrees Fahrenheit
