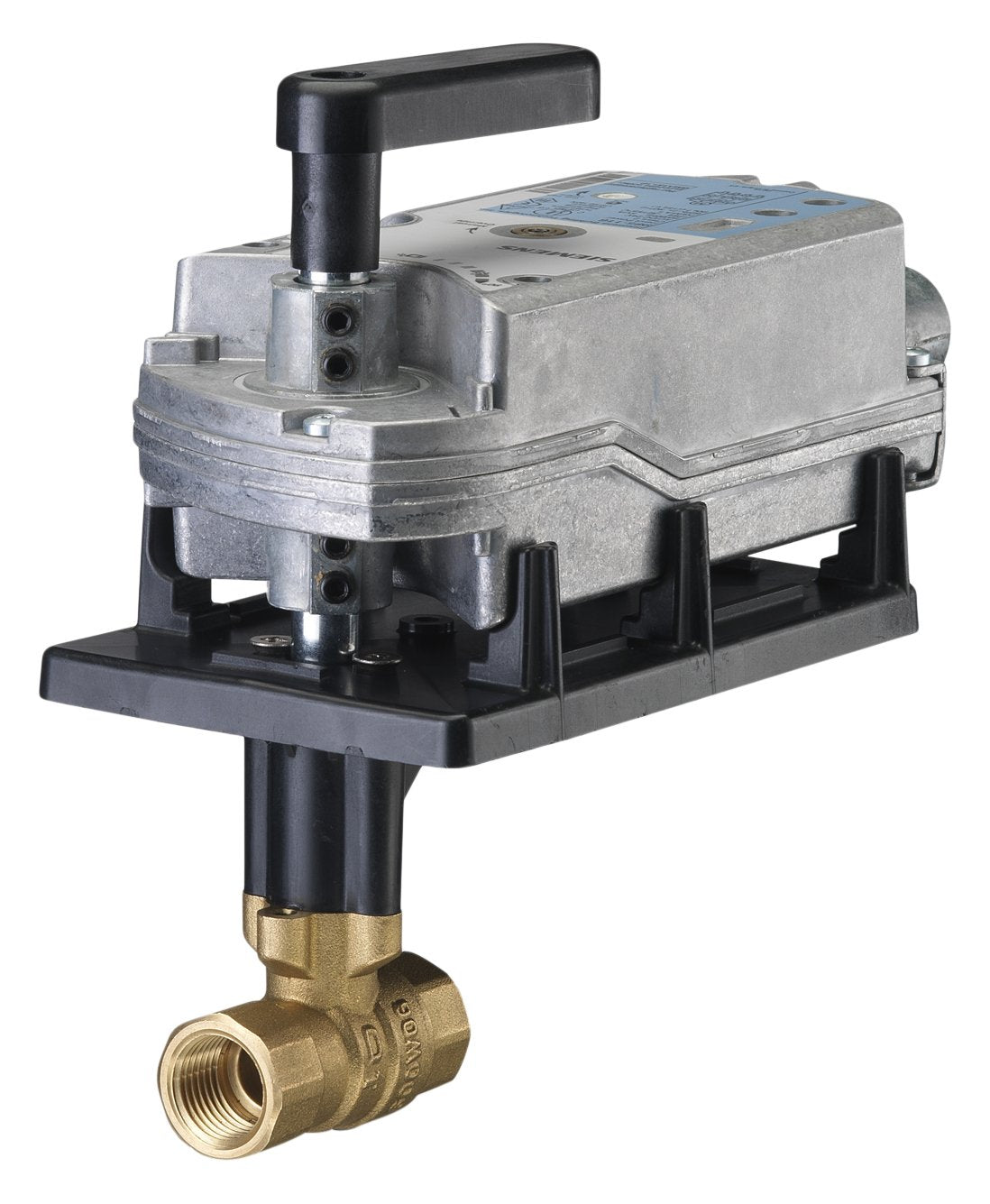

Siemens 172G-10312 Ball Valve 1 Inch 10CV + GMA161.1P NC Actuator

Product Description

The Siemens 172G-10312 ball valve assembly is crafted for HVAC systems, featuring a fail-safe actuator and a 10 CV flow rate through its 1 inch valve size. This chrome-plated brass ball valve with a brass stem is designed to provide durability and reliable operation.

• 2-way valve pattern allows for effective fluid control.
• Supports up to 200 psi for secure shut-off capabilities.
• Operational up to 250 degrees Fahrenheit, suitable for various HVAC applications.

Product Highlights

This unit is engineered to work efficiently within HVAC systems, supporting even distribution and reliable control of heating and cooling fluids. It works seamlessly with 0-10 v control signals to adjust flow rates as needed.

Product Information

Standard Information

• Brand: Siemens
• MPN: 172G-10312

Technical Specifications

• Valve Type: 2-Way, Ball
• Connection: NPT
• Pressure Rating: 200 psi
• Flow Coefficient (Cv): 10
• Material: Brass, Chrome-Plated
• Max Temperature: 250 degrees Fahrenheit
