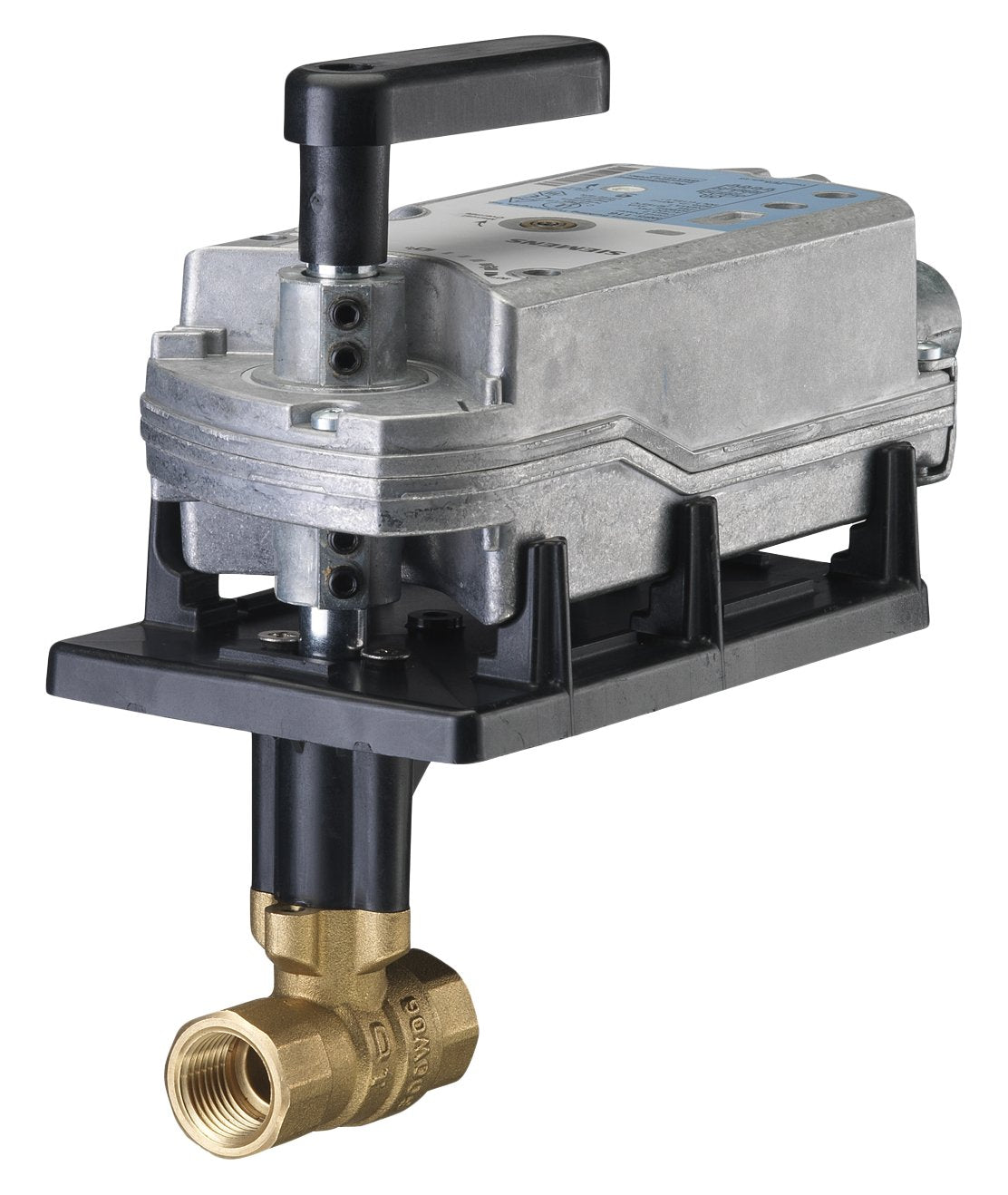

Siemens 172F-10327 2-Way 40 CV Ball Valve Assembly with NC Actuator

Product Description

The Siemens 172F-10327 is a 2-way ball valve assembly featuring a 2-inch valve size and a CV rating of 40. This assembly includes a chrome-plated brass ball, a brass stem, and a fail-safe normally closed (NC) actuator. The valve is designed for a 200 psi close-off pressure and uses NPT connections.

• 2-way valve pattern
• 40 CV rating
• Fail-safe NC actuator

Product Highlights

This Siemens ball valve assembly is built for HVAC systems and helps control fluid flow efficiently. The chrome-plated brass ball and brass stem ensure durability, while the floating configuration enhances reliability. Suitable for systems requiring a maximum temperature of up to 250 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens
• MPN: 172F-10327

Technical Specifications

• Valve Pattern: 2-way
• CV Rating: 40
• Body Rating: 600 psi
• Maximum Temperature: 250 degrees Fahrenheit
• Valve Size: 2 inches
• Close-Off Pressure: 200 psi
• Connection Type: NPT
