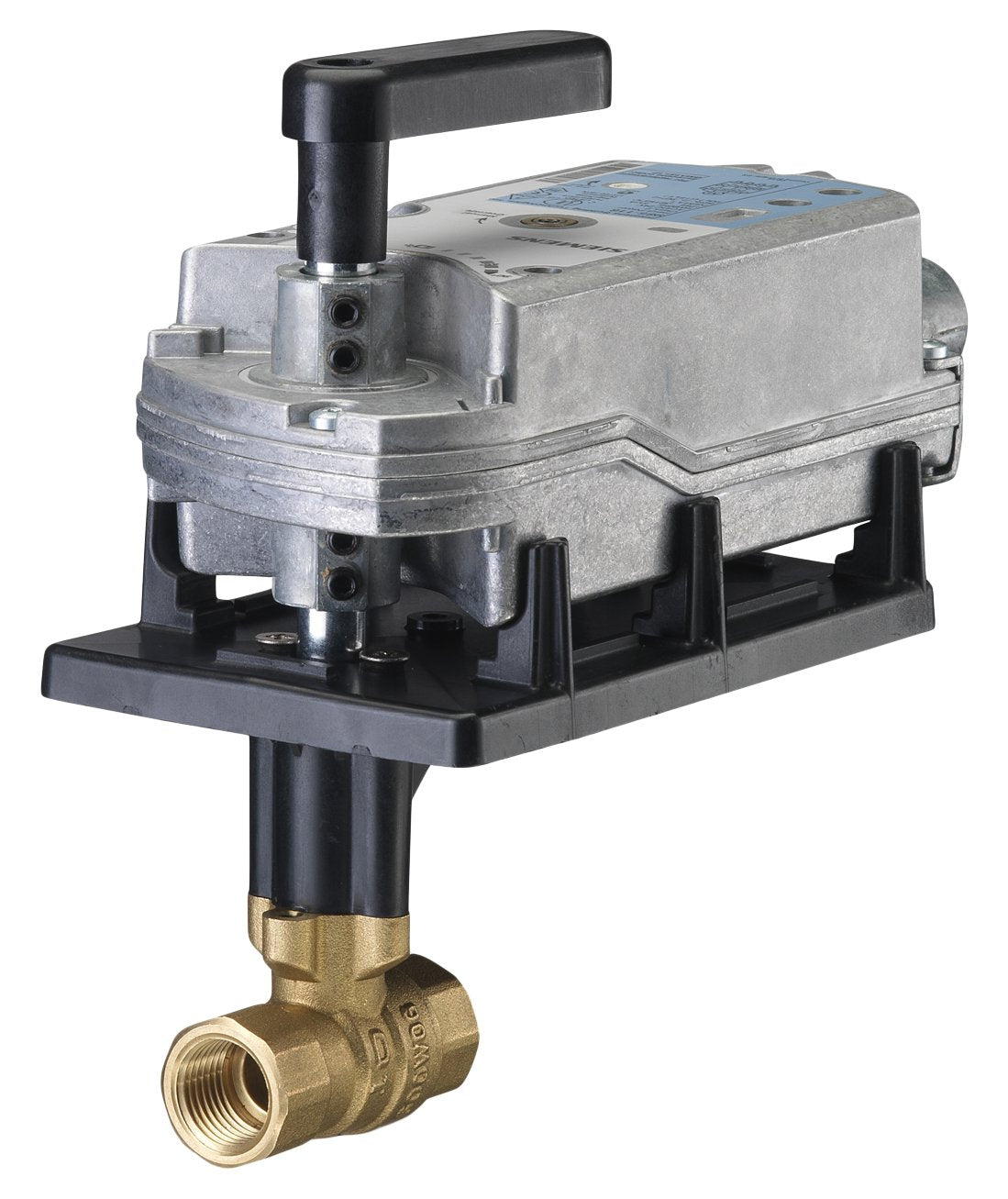

Siemens 172F-10316 1 2-Way 63CV Ball Valve 24V S R

Product Description

The Siemens 172F-10316 2-way ball valve features a 1-inch size and a 63 CV rating. Engineered with a chrome-plated brass ball and a brass stem, this floating valve is equipped with a fail-safe actuator and a close-off pressure of 200 psi. It includes a normally closed (NC) position and supports NPT connections. Ideal for HVAC applications.

• Chrome-plated brass ball and brass stem
• 63 CV rating
• 200 psi close-off pressure

Product Highlights

Siemens 172F-10316 is a robust 2-way ball valve, designed for efficient flow control in HVAC systems. It operates at a maximum temperature of 250 degrees, ensuring durability and reliability.

Product Information

Standard Information

• Brand: Siemens
• MPN: 172F-10316
• Valve Pattern: 2-way

Technical Specifications

• Ball Valve Size: 1 inch
• Valve CV/GPM: 63
• Body Rating: 600
• Close-off Pressure: 200 psi
• Maximum Temperature: 250 degrees Fahrenheit
• Connection Type: NPT
• Actuator: Fail-safe, normally closed
• Material: Chrome-plated brass ball, brass stem
