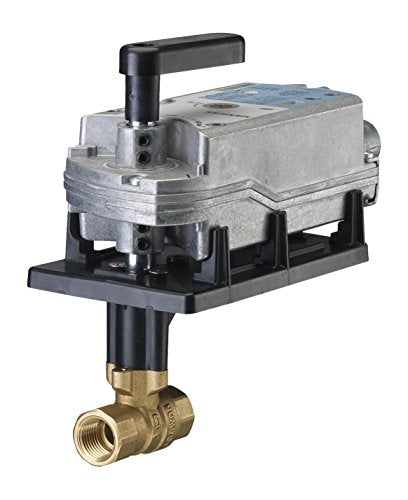

Siemens 172E-10316 Ball Valve Assembly 2-Way 1 Inch 63CV + GMA121.1P NC

Product Description

The Siemens 172E-10316 is a robust ball valve assembly designed for efficient fluid control in HVAC systems. Manufactured with a chrome-plated brass ball and a brass stem, this valve guarantees reliability in various environmental conditions. Ideal for implementing in heating, ventilation, and air conditioning control systems, the assembly features a 2-position, NC, fail-safe actuator with a 200 psi close-off pressure.

• 2-way valve configuration ensures versatile integration.
• High flow capacity with a CV rating of 63.
• Capable of handling up to 600 body rating and maximum temperature of 250 degrees Fahrenheit.

Product Highlights

This Siemens ball valve is particularly suited for applications requiring reliable flow control and where space is at a premium. Precision engineering ensures long-term durability and minimal maintenance.

Product Information

Standard Information

• Valve Size: 1 inch
• Maximum Pressure: 200 psi

Technical Specifications

• Body Material: Brass
• Actuation Type: 2-position NC, Fail Safe
• Temperature Rating: Up to 250 Fahrenheit
• Origin: Made in the USA
