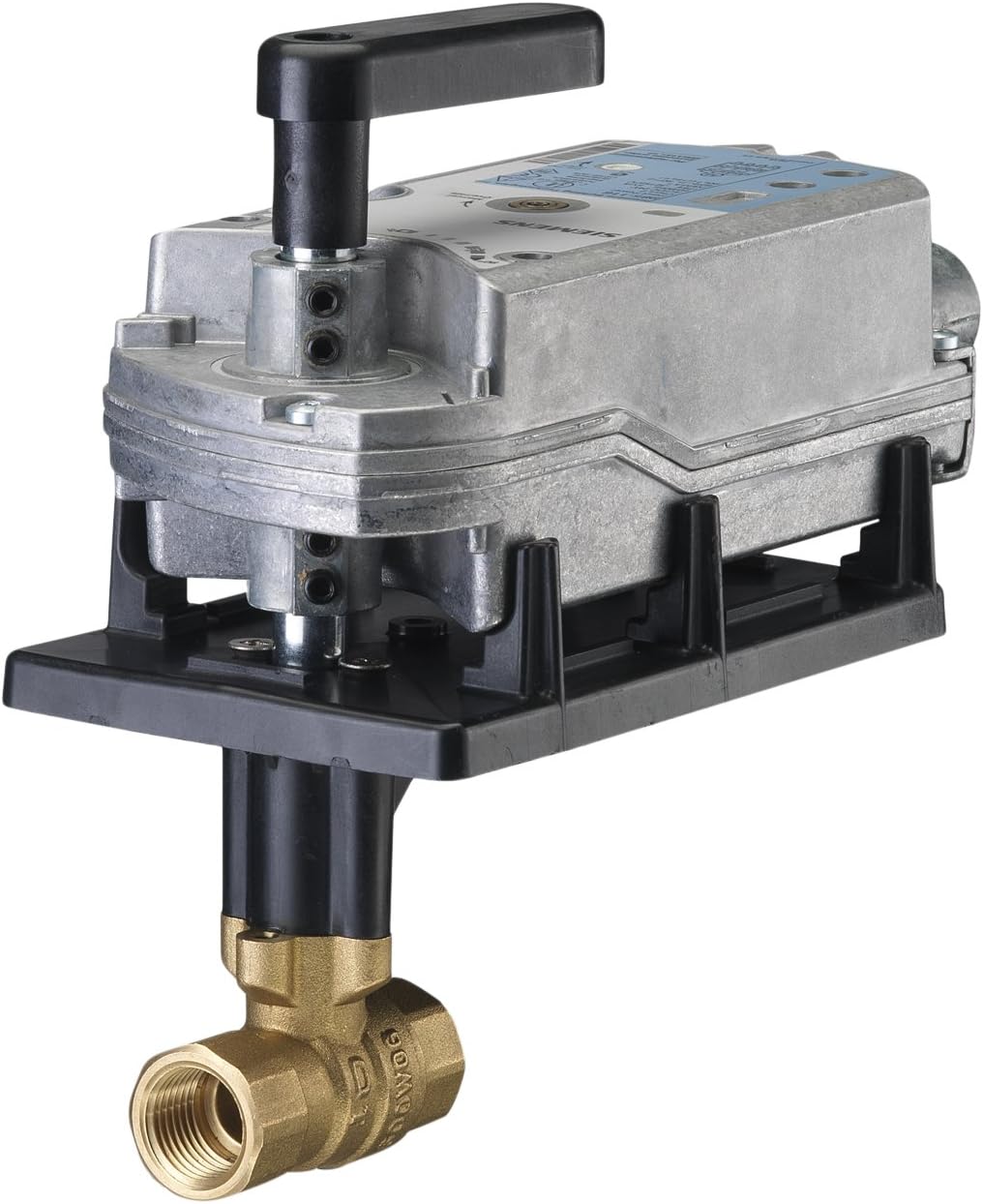

Siemens 171M-10316 1 2W 63 CV Ball Valve 120V 2P SR NO

Product Description

The Siemens 171M-10316 1 2W 63CV Ball Valve 120V 2P SR NO is a high-quality HVAC control product. Designed by Siemens, it features a 2-way pattern and a 63CV rating, making it efficient and reliable for various HVAC applications.

• 2-way valve pattern
• 63 CV rating
• 120V 2P SR NO actuator

Product Highlights

This ball valve has a chrome-plated brass ball and brass stem. It is equipped with a 2-position, normally open, fail-safe actuator and has a close-off pressure of 200 psi. Rated for a maximum temperature of 250 degrees Fahrenheit, this valve is suitable for demanding applications.

Product Information

Standard Information

• Brand: Siemens
• Model: 171M-10316
• Product Type: Valve
• Material: Brass
• Components Included: Ball, Heating & Accessories, HVAC controls, Valve/Actuator Assembly

Technical Specifications

• Valve Pattern: 2-way
• Valve CV/GPM: 63
• Body Rating: 600
• Maximum Temperature: 250 degrees Fahrenheit
• Valve Size: 1 inch
• Close-Off Pressure: 200 psi
• Power: 120V 2P SR NO
