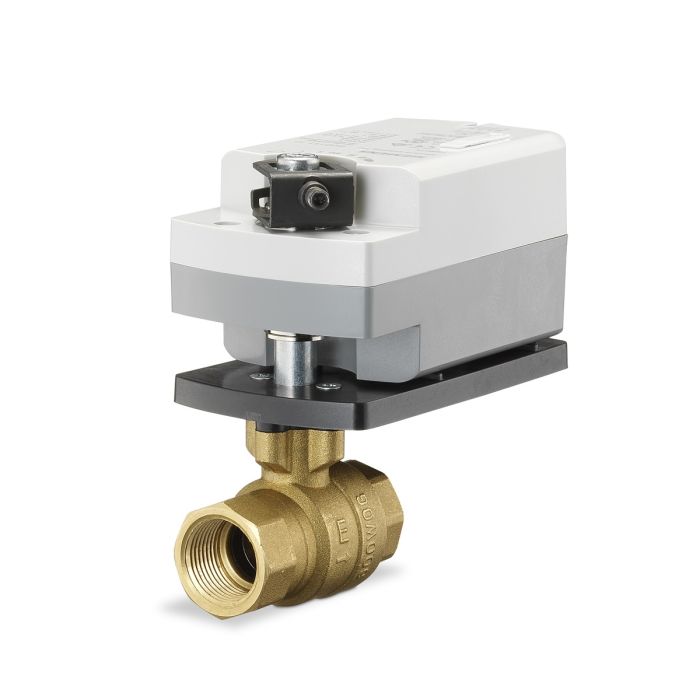

Siemens 171K-10301S Ball Valve Assembly, 2 way, 1/2 in.

Product Description

The Siemens 171K-10301S is a two-way ball valve assembly designed for HVAC systems. It offers a half-inch size and a Cv rating of 0.63. The assembly includes a stainless steel ball and stem, providing durability and resistance to corrosion.

• Blow-out proof stem for high pressure applications
• Universal mounting plate for easy installation
• Rotatable actuator plate in 90-degree increments

Product Highlights

This valve features a direct coupled actuator with a spring return mechanism, designed for modulating control. It operates at 24 VAC with a power consumption of 4.5 VA, and is normally open.

Product Information

Standard Information

• Manufacturer: Siemens
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Close-off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Power Consumption: 4.5 VA Running, 3.5 VA Holding
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
