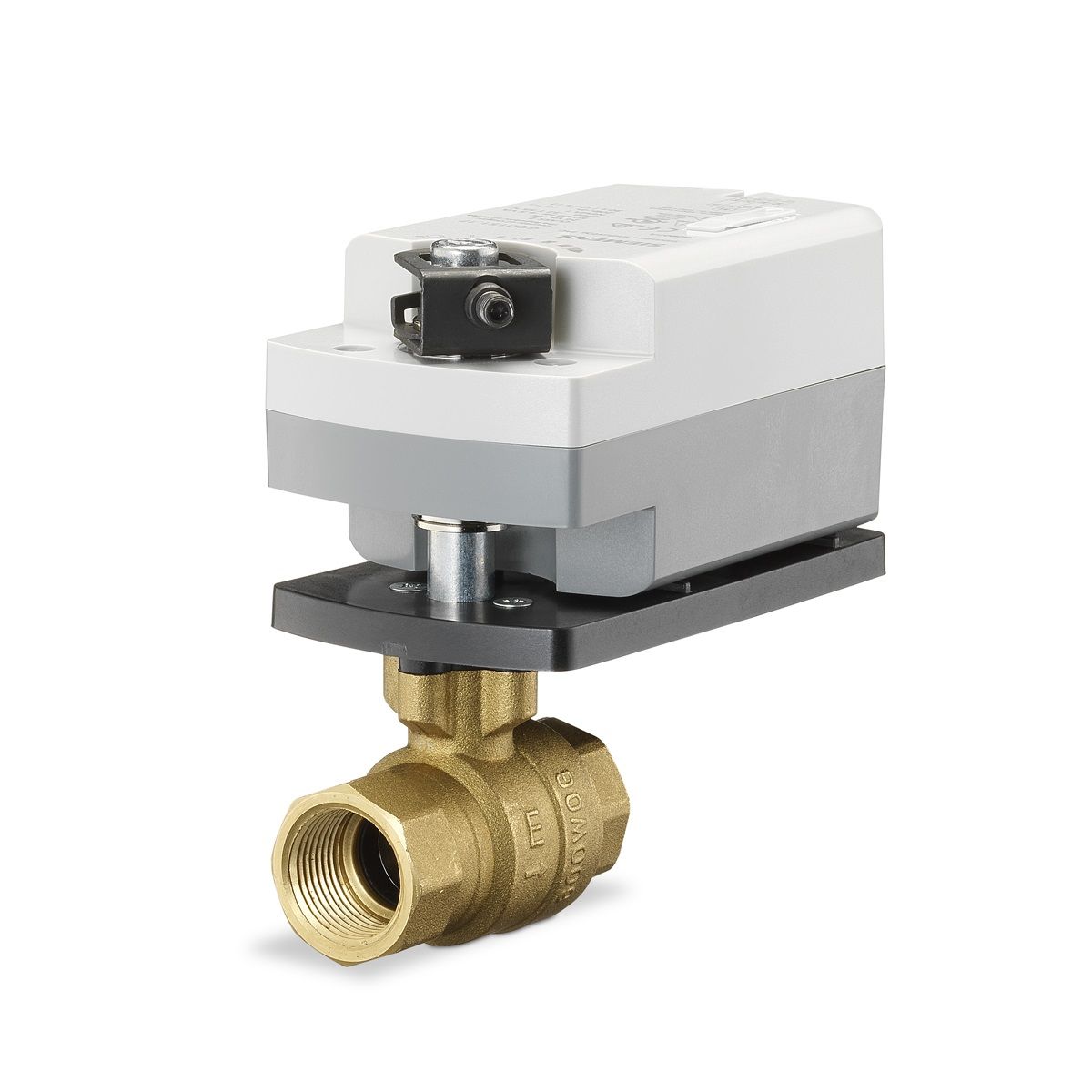

Siemens 171K-10300S Ball Valve Assembly 2 Way 1/2 in.

Product Description

The Siemens 171K-10300S is a two-way ball valve assembly designed for effective control in HVAC systems. It features a half-inch size and a flow coefficient rating of 0.4 Cv. This valve is constructed from stainless steel and includes a direct coupled actuator. The actuator provides a force of 20 inch-pounds and operates on 24 volts alternating current.

• Stainless Steel Ball and Stem
• Spring Return Mechanism
• Modulating Control with 0 to 10 VDC Signal

Product Highlights

This valve ensures reliability in heating and cooling systems while offering quick and easy installation.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171K-10300S

Technical Specifications

• Power Consumption: 4.5 VA Running, 3.5 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft, 18 AWG Plenum Cable
• Service: Water, 50% Water-Glycol Solution
• Housing: NEMA 1
