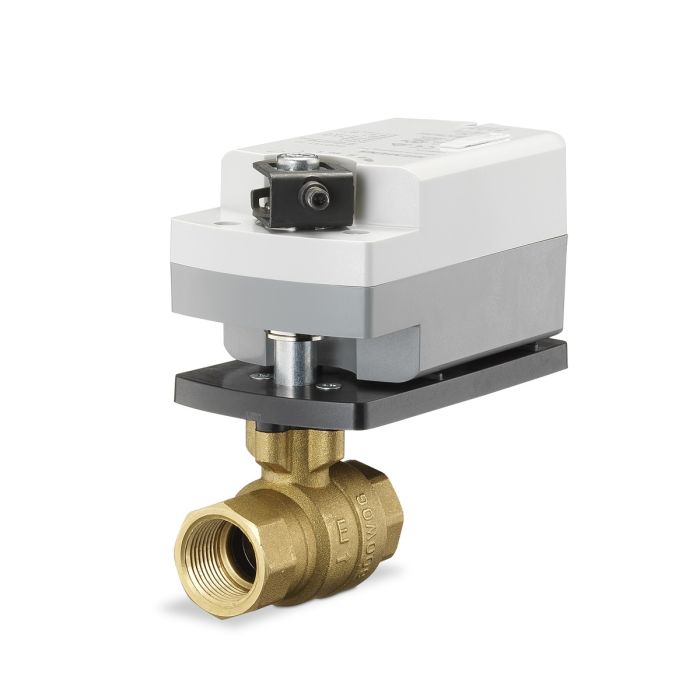

Siemens 171J-10301S Ball Valve Assembly, 2 Way, 0.5 in. (N/A)

Product Description

The Siemens 171J-10301S is a two-way ball valve assembly designed for use in HVAC control systems. This valve features a stainless steel ball and stem, providing reliable performance in various applications. It comes equipped with a direct coupled actuator that operates on 24 VAC, offering a spring return function and a torque rating of twenty inch-pounds.

• Designed for water and 50% water-glycol solutions.
• Operating temperature range is from negative twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit.
• Features blow-out proof stem for strength under high pressure.

Product Highlights

This ball valve is ideal for HVAC applications, ensuring efficient flow and control in heating and cooling systems.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171J-10301S

Technical Specifications

• Housing: NEMA 1
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Power Consumption: 4 VA Running, 3 VA Holding
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
