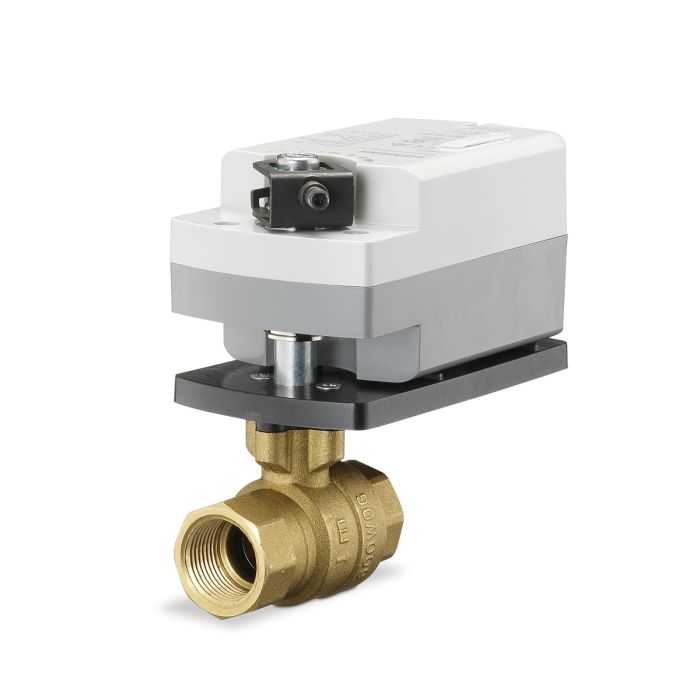

Siemens 171J-10300S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 171J-10300S is a 2-way ball valve assembly designed for various HVAC applications. This unit features a half-inch NPT connection and a flow coefficient of 0.4 Cv. The valve is constructed with stainless steel for durability and reliability in demanding environments. It utilizes a direct coupled actuator that provides a spring return mechanism for efficient operation at twenty inch-pounds of torque.

• Stainless steel construction for high-performance and durability
• Direct coupled actuator with spring return mechanism
• Operating conditions range from negative twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit

Product Highlights

This ball valve assembly is ideal for control of water and water-glycol solutions.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171J-10300S

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 4 VA Running, 3 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
