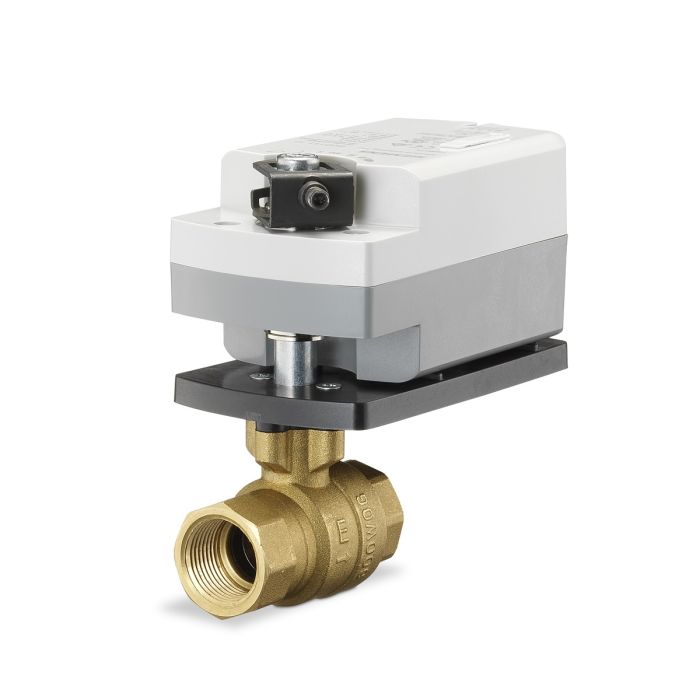

Siemens 171H-10311 Ball Valve Assembly, 2 Way, 3/4 in.

Product Description

The Siemens 171H-10311 is a ball valve assembly that offers reliable performance in HVAC control systems. This two-way valve has a diameter of three-quarters of an inch and is designed for water and 50% water-glycol solutions. It features a chrome-plated ball with a brass stem, ensuring durability under pressure.

• Operating pressure: close-off pressure of 200 psi
• Power consumption: 6.5 VA running, 4 VA holding
• Temperature range: operates from negative twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit

Product Highlights

This ball valve assembly includes a blow-out proof stem that withstands high pressure. It comes with a universal mounting plate that allows for easy installation. The actuator and plate can be rotated in ninety-degree increments, providing flexible installation options.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171H-10311

Technical Specifications

• Electrical Connection: 3 ft. 18 AWG plenum cable
• Flow Characteristic: Equal percentage
• Operating Conditions: -25 F to 130 F
• Service: Water, 50% water-glycol solution
• Housing: NEMA 1
