Product Description

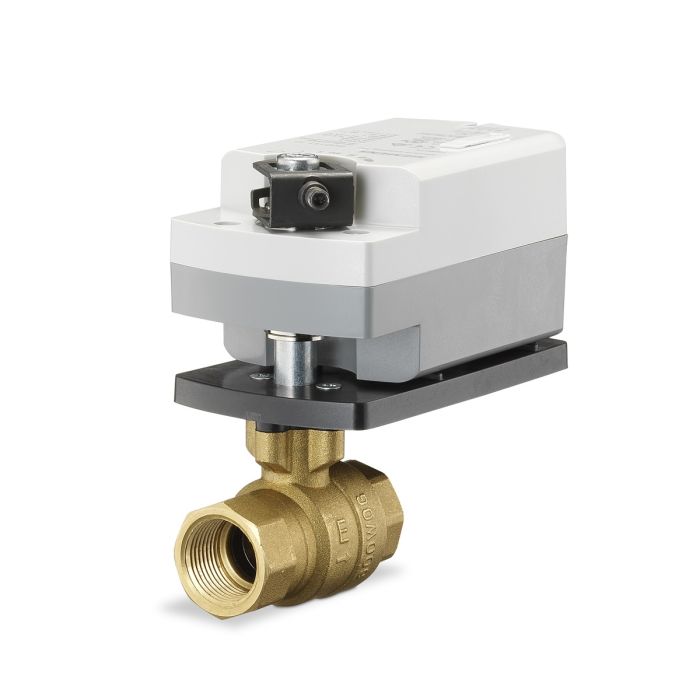

The Siemens Ball Valve Assembly, MPN 171H-10301S, is designed for HVAC applications that require reliable temperature control. This valve features a direct coupled actuator with a spring return mechanism, ensuring consistent performance in various settings.
- NPT connections for easy installation.
- Stainless steel construction for durability.
- Integrated operating handle for manual operation.
Product Highlights
This valve assembly is ideal for controlling water flow and comes equipped with a blow-out proof stem to withstand high pressure.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: 171H-10301S
Technical Specifications
-
Service: Water, 50% water-glycol solution
-
Power Consumption: 6.5 VA running, 4 VA holding
-
Close-Off Pressure: 200 psi
-
Flow Characteristic: Equal percentage
-
Operating Conditions: -25 F to 130 F (-32 C to 55 C)
-
Electrical Connection: 3 ft. 18 AWG plenum cable
-
Housing: NEMA 1
