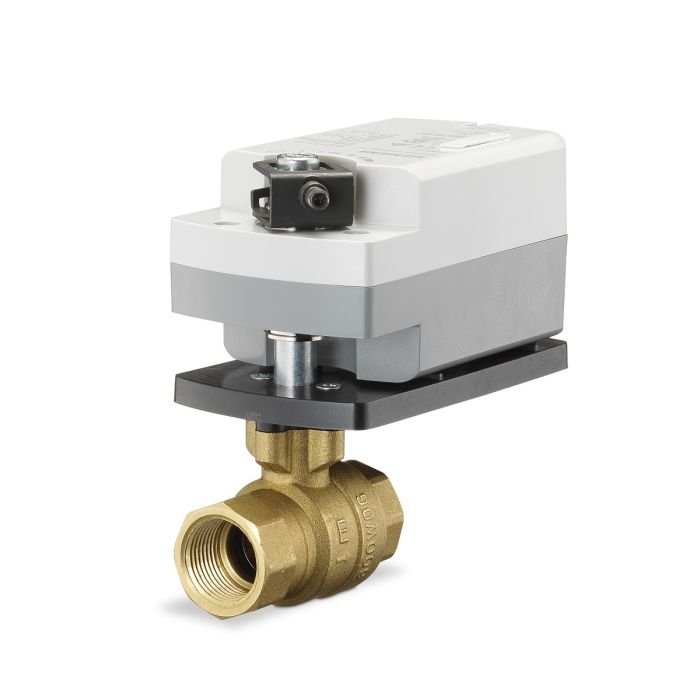

Siemens 171H-10300S Ball Valve Assembly, 2 Way, 1/2 in.

Product Description

The Siemens 171H-10300S is a ball valve assembly designed for efficient control in HVAC systems. This valve features a two-way configuration, facilitating fluid flow in two directions. It is made for applications that require robustness and reliability. The stainless steel construction ensures durability, while the direct coupled actuator enhances performance and precision in operation.

• 0.4 Cv flow coefficient for moderate flow applications.
• Spring return actuator for automatic operation.
• Operating temperature range from -25°F to 130°F.

Product Highlights

The Siemens 171H-10300S ball valve assembly is ideal for HVAC control applications, providing good flow regulation and easy installation.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171H-10300S

Technical Specifications

• Housing: NEMA 1
• Service: Water, 50% Water-Glycol Solution
• Power Consumption: 6.5 VA Running, 4 VA Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25°F to 130°F (-32°C to 55°C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
