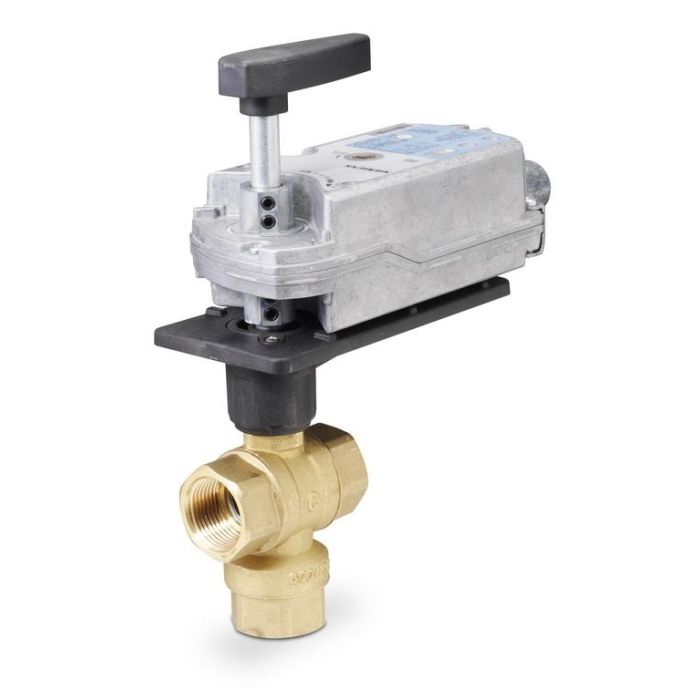

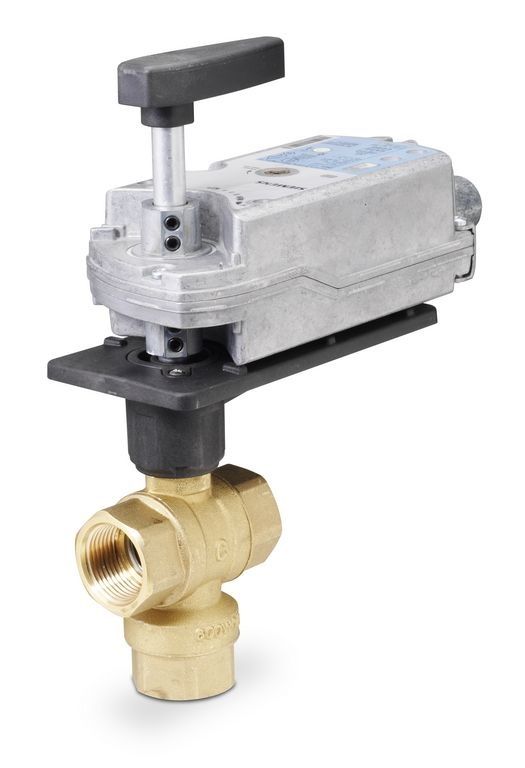

Siemens 171G-10372S Ball Valve Assembly, 3 Way, 2 in.

Product Description

The Siemens 171G-10372S is a robust three-way ball valve assembly designed for HVAC applications. It features a two-inch size and is constructed with stainless steel, ensuring durability in various conditions.

• Blow-out proof stem that withstands high pressure
• Direct coupled actuator with spring return functionality
• Modulating control with feedback signal from zero to ten VDC

Product Highlights

This ball valve is equipped with a universal mounting plate and can handle a close-off pressure of two hundred PSI, making it suitable for demanding applications.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 171G-10372S

Technical Specifications

• Housing: NEMA 1
• Service: Water, Glycol Solutions to 50%
• Power Consumption: 5 VA Running, 4 VA Holding
• Auxiliary Switches: Dual
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Plenum Cable
