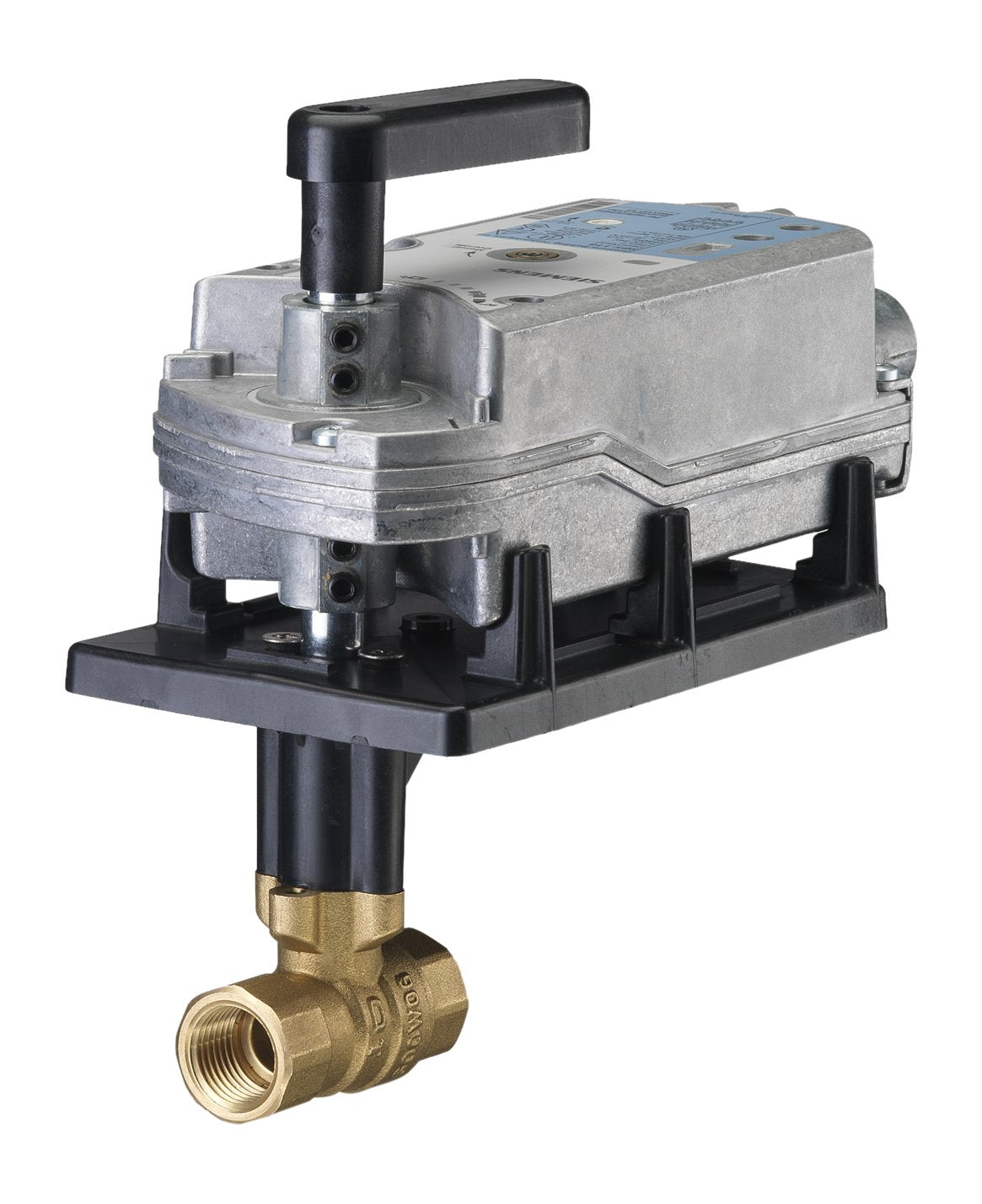

Siemens 171G-10317 Ball Valve and GMA161.1P Actuator Assembly 1.25 Inch 16CV

Product Description

The Siemens 171G-10317 Ball Valve and Actuator Assembly integrates a 1.25-inch brass ball valve with a GMA161.1P fail-safe actuator, designed for robust HVAC applications. This 2-way valve system provides precise flow control with a Cv/GPM of 16 and is capable of handling up to 200 PSI close-off pressure, making it ideal for commercial and industrial HVAC systems.

• 2-way valve configuration ensures straightforward integration into existing systems.
• Engineered for up to 250 degrees Fahrenheit temperature, providing reliable performance under varying operations conditions.
• Features a fail-safe actuator which ensures system safety and integrity during power failures.

Product Highlights

Constructed with high-quality brass and a chrome-plated brass ball, the 171G-10317 offers excellent resistance against corrosion and wear. Its robust design meets ANSI Class IV leakage standards, ensuring minimal leakage and enhanced energy efficiency. The assembly's actuator supports both 24 VAC operation and offers a floating control type, adaptable to various control environments.

Product Information

Technical Specifications

• Valve Size: 1.25 inches
• Flow Capacity (Cv): 16
• Maximum Operating Pressure: 200 PSI
• Maximum Temperature: 250 degrees Fahrenheit
• Connection Type: FNPT x FNPT
• Material: Brass
• Actuator Type: Floating, Non-Spring Return
