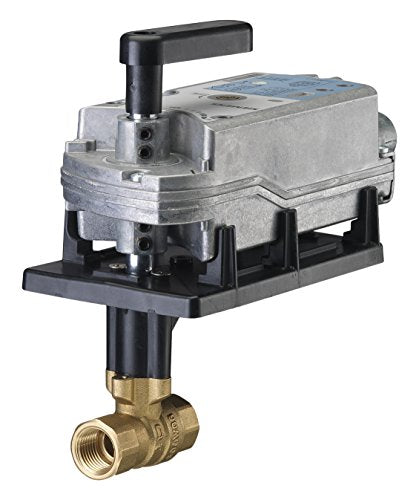

Siemens 171G-10316 1 Inch 2-Way 63 Cv Ball Valve Assembly + GMA161.1P

Product Description

The Siemens 171G-10316 is a 1 inch 2-way ball valve assembly that integrates a fail-safe actuator, designed to deliver precise flow control in various HVAC systems.

• Features 200 psi close-off pressure capability.
• Contains a chrome-plated brass ball and brass stem for durability.
• Incorporates a fail-safe actuator that ensures operational safety and efficiency under varying conditions.

Product Highlights

This valve assembly offers exceptional performance with its 63 Cv flow capacity and is engineered to maintain tight control with a maximum temperature tolerance of 250 degrees Fahrenheit. Its structure supports universal mounting, accommodating various installation scenarios.

Technical Specifications

• Valve Type: 2-Way
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 63
• Body Material: Brass
• Actuator Type: Floating, Non-Spring Return
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 degrees Fahrenheit
• Power Source: 24 VAC
