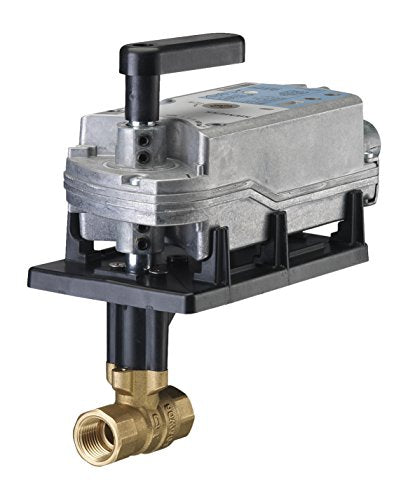

Siemens 171G-10313 1 NPT 2-Way Ball Valve Assembly w/ GMA161.1P Actuator (16 Cv)

Product Description

The Siemens 171G-10313 is a 1 NPT 2-way ball valve assembly paired with a GMA161.1P actuator. This product features a flow capacity of sixteen Cv, making it suitable for various HVAC applications. It provides reliable operation with equal percentage flow control.

• 200 psi close-off with ANSI Class IV leakage.
• Available with chrome-plated brass or stainless steel components.
• Integrated thermal barrier between actuator and mounting plate.

Product Highlights

This valve assembly combines efficiency and durability, suitable for effectively controlling fluid flow in HVAC systems.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• Product Code: 171G-10313

Technical Specifications

• Body Pattern: 2-Way
• Actuator Type: Floating
• Voltage: 24 VAC
• Flow Capacity (Cv): 16
• Connection Size: 1 inch
• Connection Type: FNPT x FNPT
• Fail Safe Mode: Non-Spring Return
• Shipping Dimensions: 8.38 x 8.31 x 5.38 inches
