Siemens 171F-10328 2-Way Ball Valve Assembly with GMA131.1P Actuator 63 Cv

Product Description

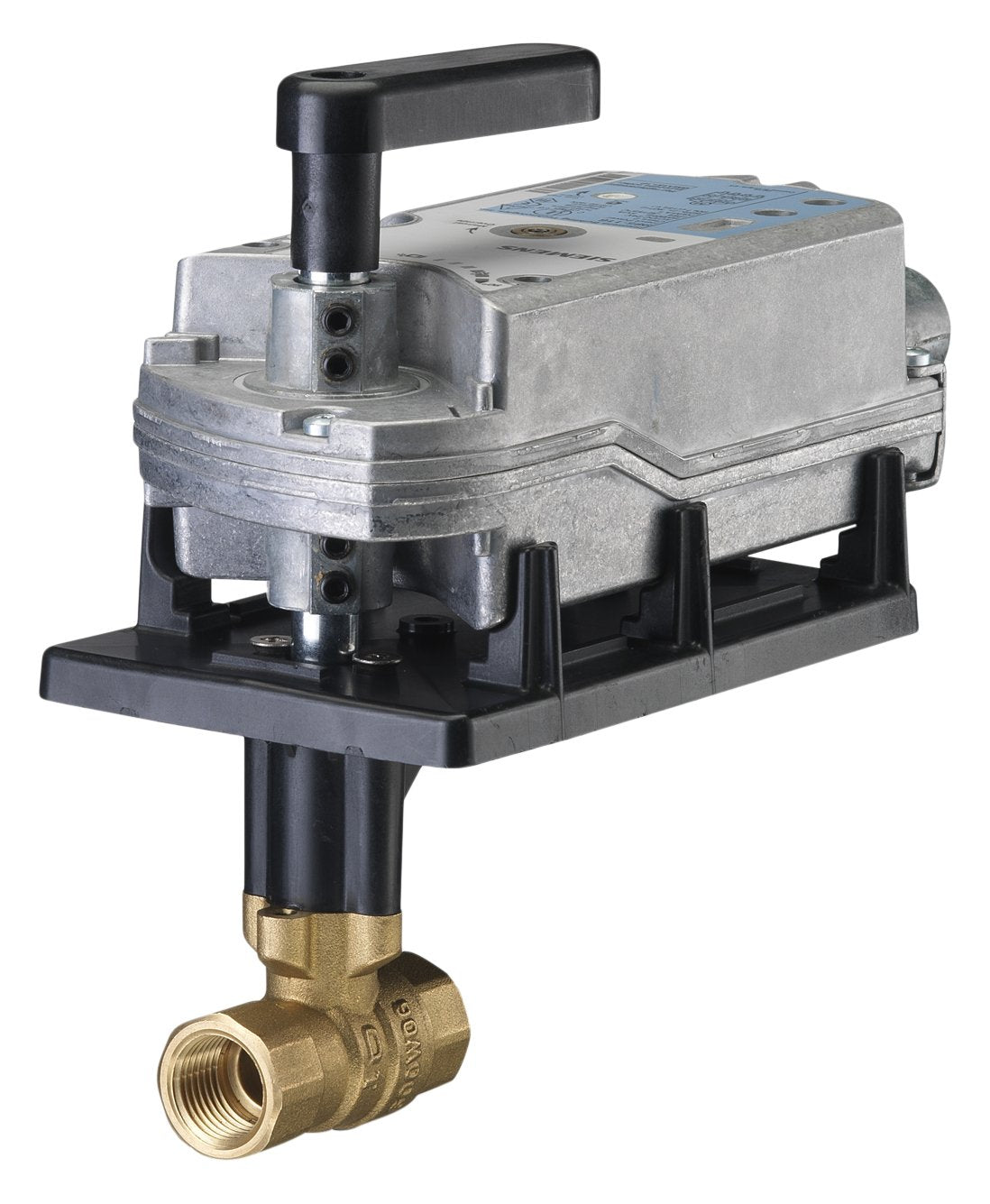

The Siemens 171F-10328 2-Way Ball Valve Assembly is designed with a chrome-plated brass ball and brass stem, offering a reliable and durable solution for your HVAC needs. This assembly includes the GMA131.1P actuator, which ensures efficient performance.

• 2-way valve design
• 63 Cv flow capacity
• 200 psi close-off

Product Highlights

This product features a fail-safe actuator, 200 psi close-off, and an NPT connection. It's suitable for a variety of HVAC applications, providing consistent and efficient flow control.

Product Information

Standard Information

• Manufacturer: Siemens
• Model: 171F-10328

Technical Specifications

• Valve pattern: 2-way
• Valve Cv/GPM: 63
• Body rating: 600 psi
• Maximum temperature: 250 degrees Fahrenheit
• Valve size: 2 inches
• Flow Capacity (Cv): 63
• Actuator Type: Floating
• Fail Safe Mode: Non-Spring Return
• Connection Size: 2 inches
• Connection Type: FNPT x FNPT
• Material: Brass
• Position: Normally Open
• Shipping Depth: 10.06 inches
• Shipping Width: 9.13 inches
• Shipping Height: 5.38 inches
