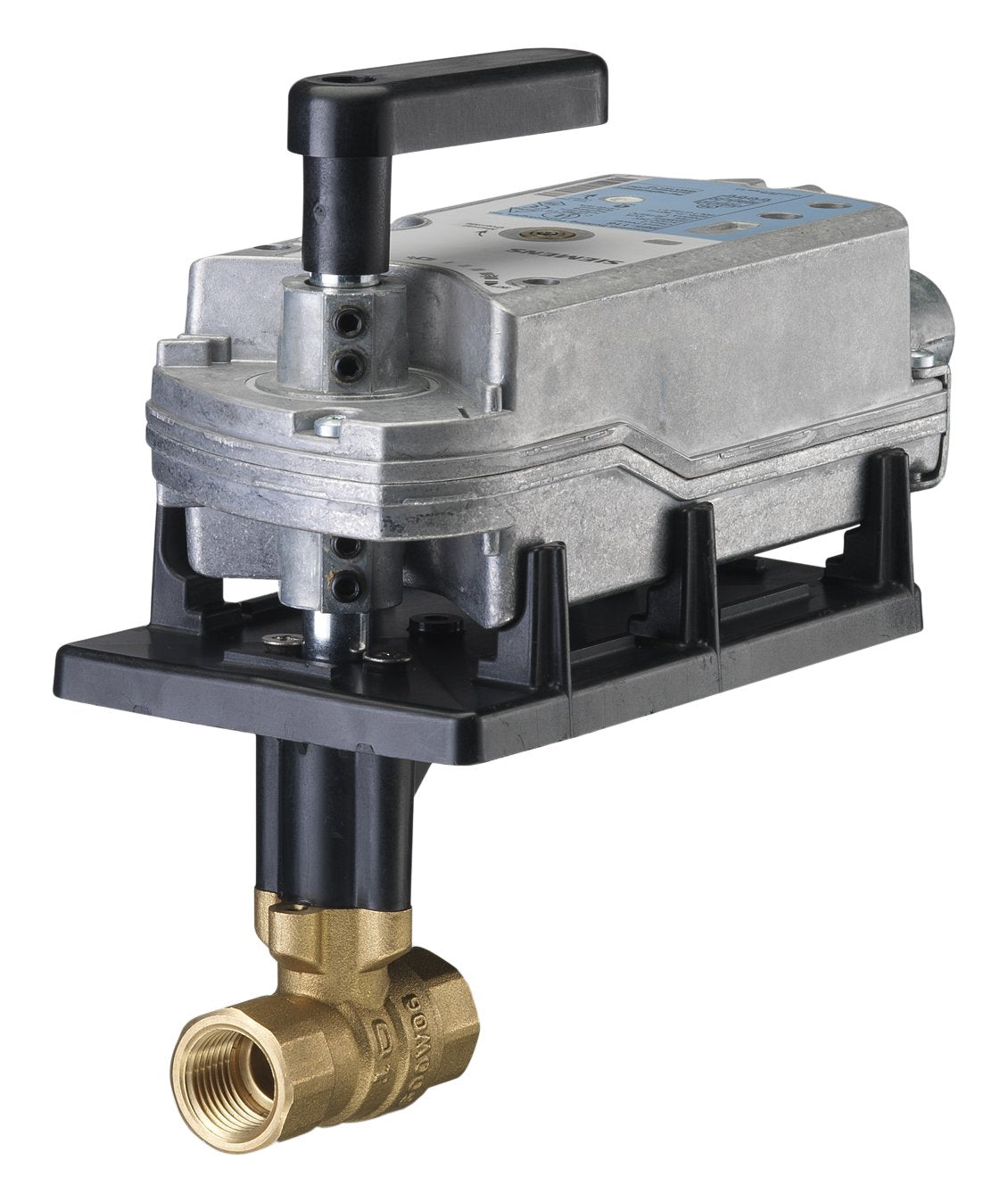

Siemens 171F-10321 1.25 2W 100CV Ball Valve + GMA131.1P

Product Description

The Siemens 171F-10321 is a 1-1/4 inch, 2-way ball valve assembly. It includes a GMA131.1P actuator and delivers a 100 Cv flow capacity. The valve features a chrome-plated brass ball and a brass stem, providing durability and reliability for HVAC applications.

• 2-way valve design
• 100 Cv flow capacity
• Includes GMA131.1P actuator

Product Highlights

This valve assembly ensures equal percentage flow control. It is equipped with a non-spring return actuator and standoffs for thermal isolation. The actuator and plate can be rotated in 90-degree increments for flexible installation. The valve is suitable for high-pressure systems with a blow-out proof stem.

Product Information

Standard Information

• Brand: Siemens
• Model/MPN: 171F-10321
• Manufacturer: Siemens Building Technology
• Product Type: Valve

Technical Specifications

• Valve Pattern: 2-way
• Flow Capacity (Cv): 100
• Maximum Temperature: 250 degrees Fahrenheit
• Valve Size: 1.25 inches
• Body Rating: 600 psi
• Connection Type: FNPT x FNPT
• Actuator Type: Floating
• Fail Safe Mode: Non-Spring Return
• Material: Brass
• Position: Normally Open
• Torque: 44 lb-in
• Voltage: 24 VAC
• Shipping Weight: 2.7 lbs
• Body Material: Chrome-plated brass
• Stem Material: Brass
• Failure Mode: Fail safe
• Close-Off Pressure: 200 psi
