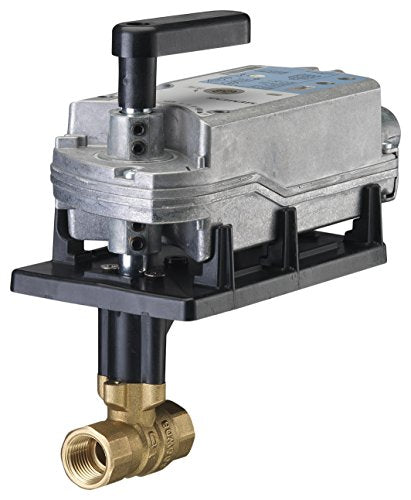

SIEMENS 171F-10313 1 Inch 2-Way 16CV BALL Valve+GMA131.1P

Product Description

The Siemens 171F-10313 Valve Actuator Assembly provides reliable and precise control in HVAC systems. Featuring advanced engineering by Siemens, this 1-inch NPT 2-way ball valve is equipped with a GMA131.1P actuator, boasting a flow capacity of 16 Cv.

• 200 psi close-off pressure rating with ANSI Class IV leakage.
• Blow-out proof stem and universal mounting options.
• Manual operation handle and rotatable actuator mount.

Product Highlights

Designed for durability, the valve features either a chrome-plated brass or stainless steel ball and stem, ensuring long-term reliability under high pressures. The thermal barrier standoffs prevent overheating, maintaining the integrity of the actuator's operation.

Product Information

Standard Information

• Brand: Siemens
• MPN: 171F-10313

Technical Specifications

• Weight: 2.7 lbs
• Flow Capacity (Cv): 16
• Connection Type: FNPT x FNPT
• Material: Brass
• Actuator Type: Floating
• Fail Safe Mode: Non-Spring Return
• Voltage: 24 VAC
• Torque: 44 lb-in
