Siemens 171E-10327 2 2W 40CV Ball Valve+GMA121.1P

Product Description

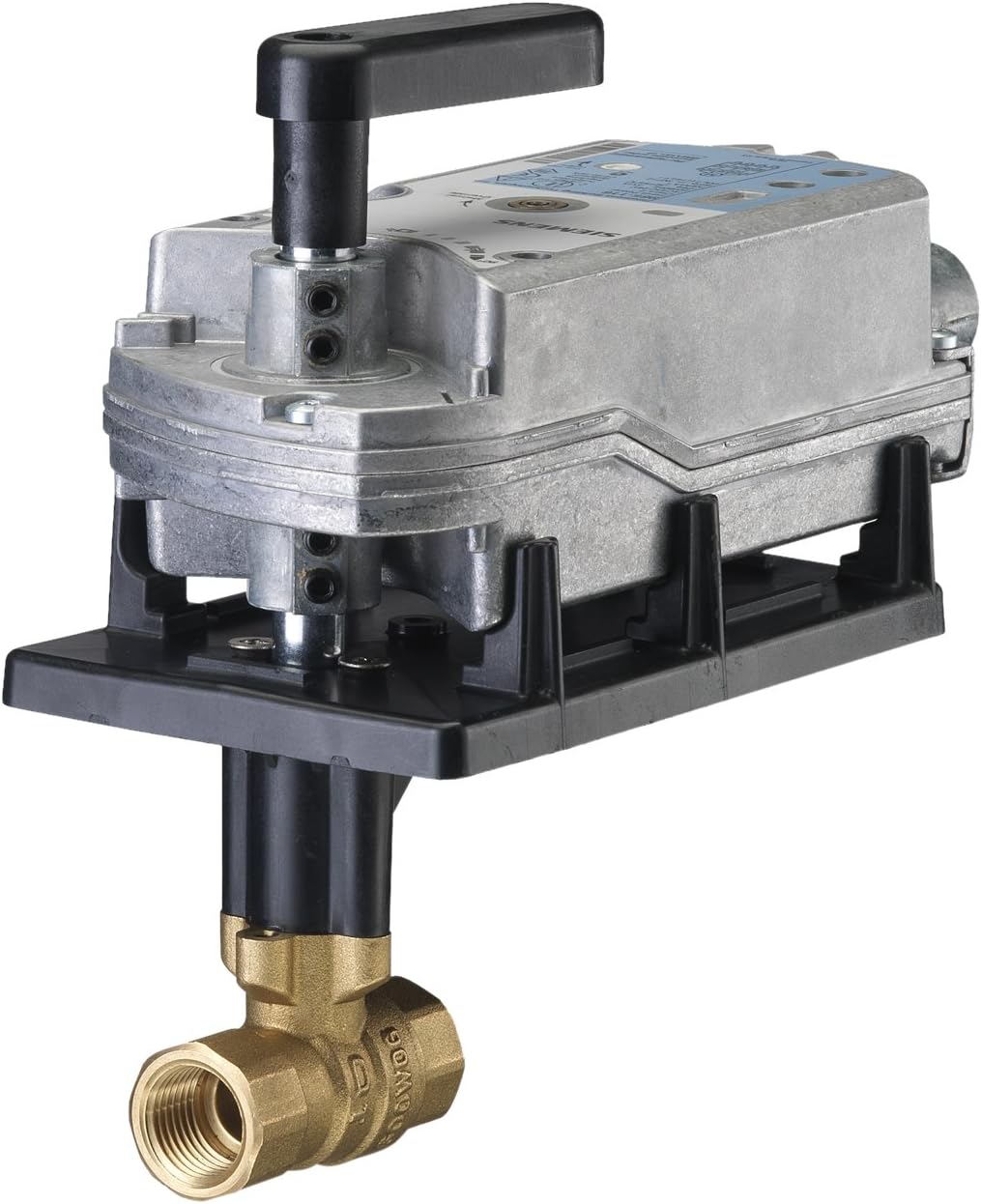

The Siemens 171E-10327 is a 2-way, 2-inch ball valve assembly with a chrome-plated brass ball and brass stem. This valve is designed to handle up to 200 psi close-off pressure with a 40 CV rating. It includes a fail-safe actuator (GMA121.1P) with a 2-position, normally open operation. This valve is suitable for various HVAC applications, providing reliable and efficient control.

• 2-way valve pattern
• 40 CV/GPM
• 200 psi close-off

Product Highlights

The Siemens 171E-10327 provides equal percentage flow control, thanks to its OpenAir actuators. It ensures high reliability with a blow-out proof stem and a universal mounting plate. The actuator can be rotated in 90-degree increments for flexible installation.

Product Information

Standard Information

• Brand: Siemens
• Model: 171E-10327

Technical Specifications

• Valve Size: 2 inches
• Valve Pattern: 2-way
• Flow Capacity (CV): 40
• Maximum Temperature: 250 degrees Fahrenheit
• Body Rating: 600 psi
• Connection Type: FNPT x FNPT
• Material: Brass
• Actuator Type: Floating
