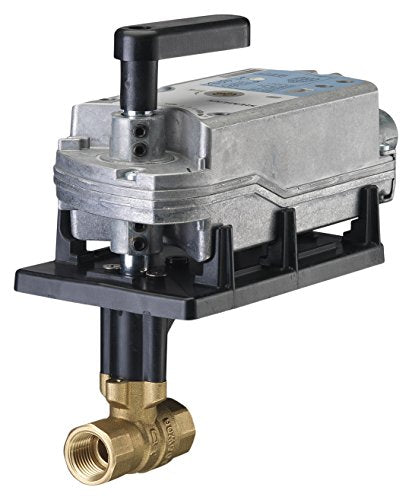

Siemens 171E-10326 Ball Valve Assembly 160CV 1-1/2 inch Replacement 171E-10326

Product Description

Introducing the Siemens 171E-10326, a top-grade 2-way ball valve assembly with a GMA121.1P actuator designed for robust HVAC control. This assembly features a 1-1/2 inch NPT connection and is engineered to offer precise flow control with its 160 Cv capacity.

• Equipped with a chrome-plated brass ball and a sturdy brass stem for enhanced durability.
• ANSI Class IV leakage protection to ensure reliable operation under pressure up to 200 psi.
• Floating actuator type with non-spring return function.

Product Highlights

This valve assembly is perfect for HVAC systems requiring reliable, high-capacity flow control. Its compact design and universal mounting options make installation straightforward.

Product Information

Standard Information

• Brand: Siemens
• Model: 171E-10326

Technical Specifications

• Valve Size: 1-1/2 inches
• Max Temperature: 250 degrees
• Body Rating: 600 psi
• Flow Capacity (Cv): 160
• Material: Brass
• Connection Type: FNPT x FNPT
• Voltage: 24 VAC
• Torque: 44 lb-in
