SIEMENS 171E-10321 1-1/4 Inch Ball Valve Assembly 100CV Replacement 171E-10321

Product Description

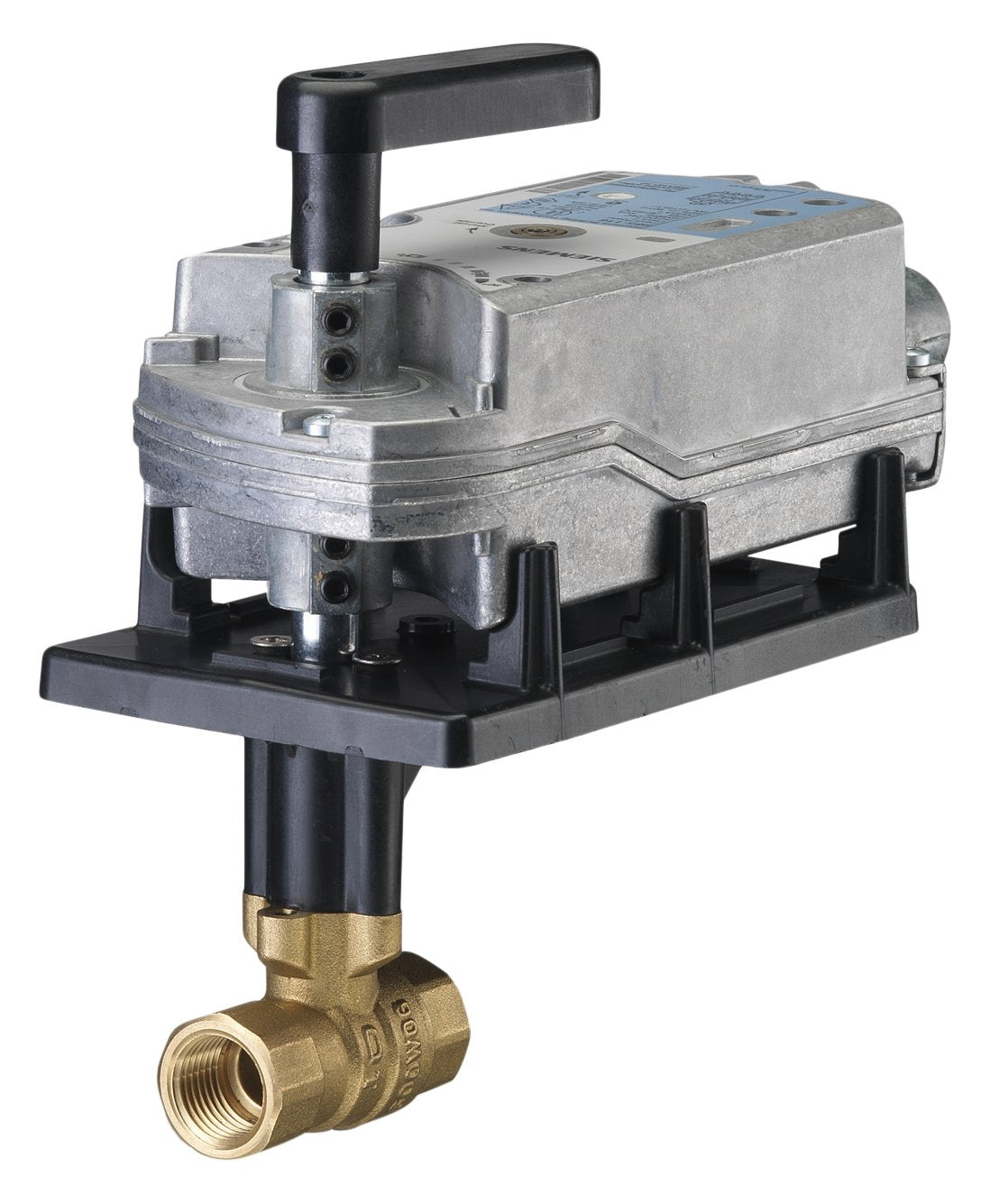

The Siemens 171E-10321 features a 1-1/4 inch 2-way ball valve assembly combined with a GMA121.1P actuator, designed to offer both exceptional flow control and reliability in HVAC systems. This valve assembly is capable of handling up to 100 Cv with a maximum operational pressure of 200 psi.

• Constructed with a chrome-plated brass ball and brass stem for durability.
• ANSI Class IV leakage protection across all line sizes and actuators.
• Equipped with a robust OpenAir actuator for dependable performance.

Product Highlights

Siemens' 2-Way Ball Valve integrates cutting-edge technology with industrial-grade materials, making it a top selection for professional HVAC applications. The product’s design emphasizes operational efficiency and safety with features like a blow-out-proof stem and a universal mounting plate that accommodates various installation needs.

Technical Specifications

• Valve Size: 1.25 inches
• Body Pattern: 2-way
• Flow Capacity (Cv): 100
• Operating Pressure: up to 200 psi
• Temperature Threshold: up to 250 degrees Fahrenheit
• Connection Type: FNPT x FNPT
• Actuator Type: Floating, Non-Spring Return
• Electrical Rating: 24 VAC
