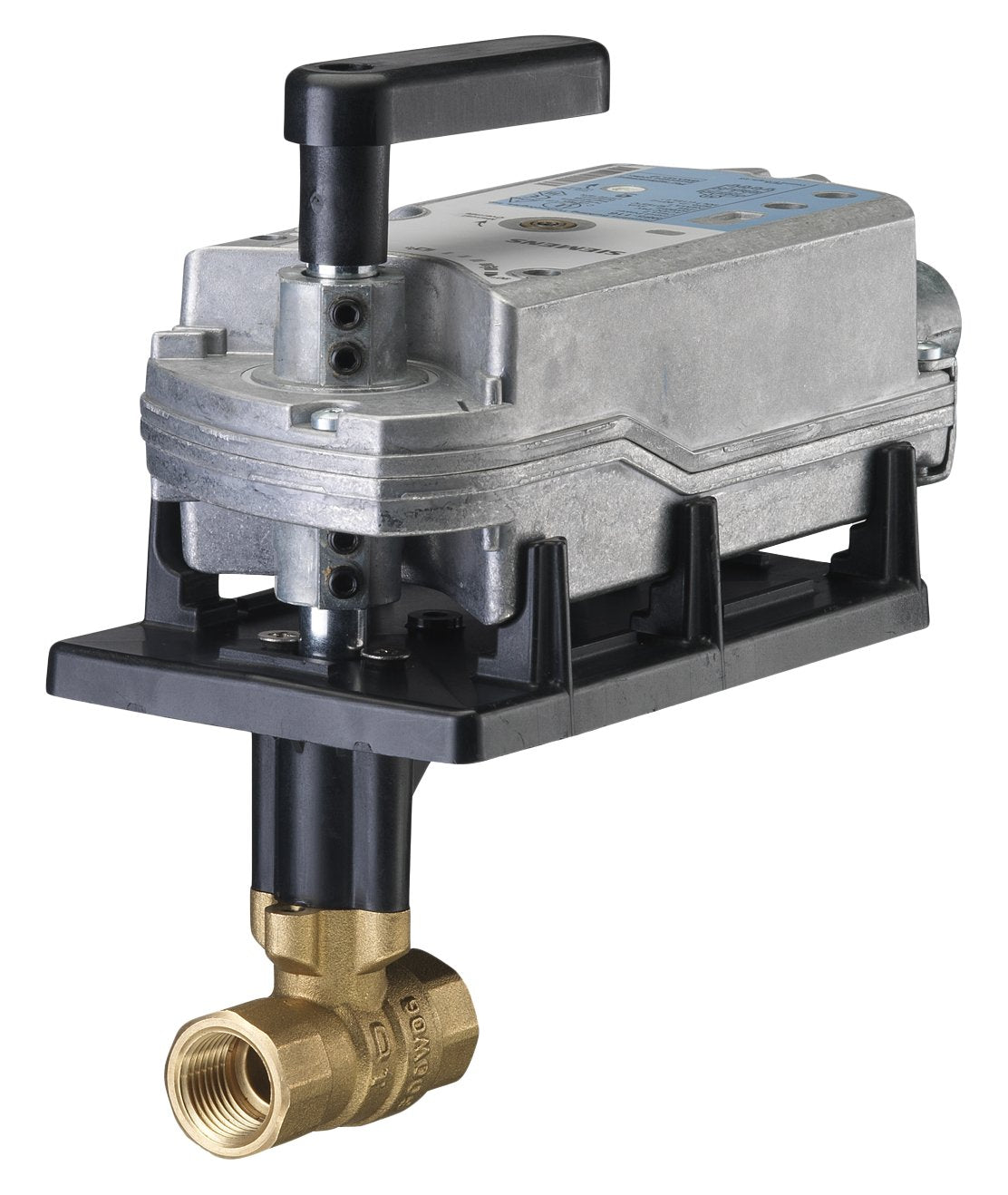

Siemens 171E-10317 1.25 inch 2W 16CV BALL Valve + GMA121.1P

Product Description

Siemens model 171E-10317 features a 1.25 inch 2-way ball valve assembly with a robust GMA121.1P actuator. This product provides efficient flow control with a 16 Cv rating, suitable for various HVAC systems.

• Compatible with OpenAir actuators for reliable operation.
• Features a chrome-plated brass ball and brass stem for durability.
• Incorporates a fail-safe actuator with 200 psi close-off capabilities.

Product Highlights

Designed for equal percentage flow control, the Siemens 171E-10317 valve ensures high performance in HVAC applications. The 2-way ball valve design permits quarter-turn rotary control, facilitating quick and easy adjustments.

Product Information

Standard Information

• Brand: Siemens
• MPN: 171E-10317

Technical Specifications

• Valve Type: 2-Way
• Body Material: Brass
• Flow Capacity: 16 Cv
• Maximum Temperature: 250 degrees Fahrenheit
• Connection Type: FNPT x FNPT
• Actuator Type: Floating, Non-Spring Return
• Voltage: 24 VAC
• Torque: 44 lb-in
