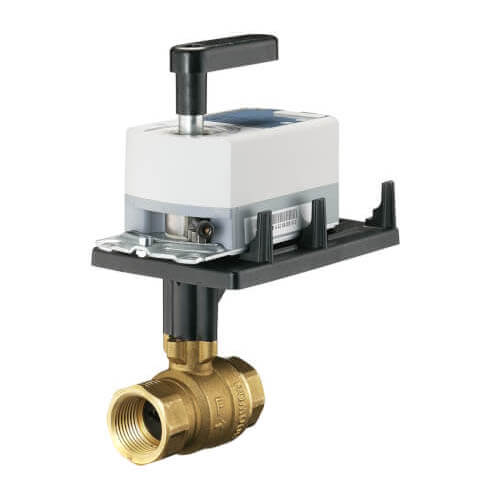

Siemens 171D-10326 Valve Assembly with GLB161.1P Actuator 160 Cv

Product Description

The Siemens 171D-10326 Valve Assembly with GLB161.1P Actuator is a robust solution for HVAC systems. This assembly features a 1-1/2 inch, 160 Cv ball valve made with brass and chrome-plated brass components. The actuator works with 0-10 V fail-in-place control, ensuring reliability.

• 2-way pattern valve, 1-1/2 inch NPT
• 160 Cv flow coefficient
• Operates at temperatures up to 250 degrees Fahrenheit

Product Highlights

This valve assembly is ideal for controlling hot or chilled water in HVAC systems. It is engineered for use in convectors, fan coil units, unit conditioners, radiation coils, and reheat coils. The assembly includes a non-spring return actuator that can handle power failures.

Product Information

Standard Information

• Brand: Siemens
• MPN: 171D-10326

Technical Specifications

• Valve Pattern: 2-way
• Flow Coefficient: 160 Cv
• Valve Size: 1-1/2 inch
• Connection: NPT
• Material: Brass and chrome-plated brass
• Temperature: 35 to 250 degrees Fahrenheit
• Valve Actuator Type: Electronic
• Supply Voltage: 24 VAC
• Dimensions: 7-1/16 x 9-1/4 x 5-3/8 inches
• Leakage Rate: ANSI Class IV
