Siemens 171D-10322 Ball Valve Assembly 1.5 Inches 2W 25CV

Product Description

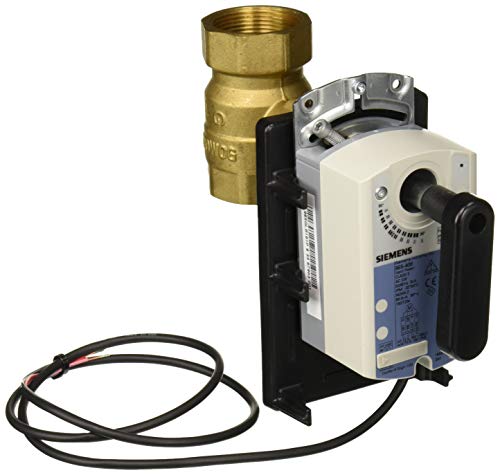

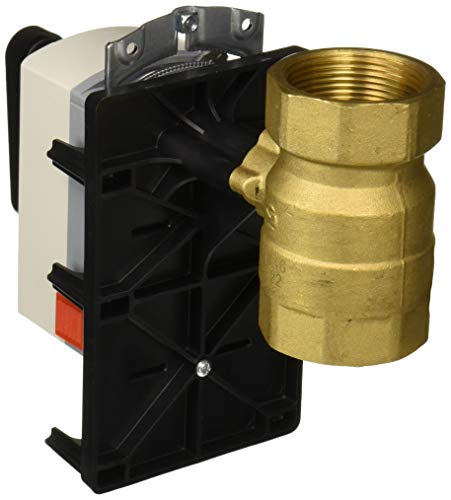

The Siemens 171D-10322 Ball Valve Assembly integrates a robust 1.5-inch 2-way ball valve with a fail-in-place 0-10V actuator. This product, designed by Siemens Building Technology, is essential for managing water flow in HVAC systems. Constructed with a chrome-plated brass ball and a brass stem, it ensures durability and reliable performance in demanding environments.

• 2-way ball valve, 25 cv, with fail-in-place actuator
• Maximum operating pressure of 200 psi with a temperature tolerance up to 250 degrees Fahrenheit
• NPT end connections for straightforward installation

Product Highlights

This valve assembly is suitable for water and glycol solutions and has a leakage rate compliant with ANSI Class IV. It's perfect for use in fan coil units, convectors, and similar HVAC applications.

Product Information

Standard Information

• Brand: Siemens
• MPN: 171D-10322

Technical Specifications

• Valve Size: 1.5 inches
• Valve Type: 2-way ball with electronic actuator
• Material: Chrome-plated brass, EPDM
• Flow Capacity: Cv 25
• Operating Pressure: up to 200 psi
• Temperature Range: 35 to 250 degrees Fahrenheit
• Connection Type: NPT
